SOM-SMARC-APL

Intel® Atom™ x5-E3930 Dual Core @1.3 GHz (Burst 1.8GHz), 2MB L2 Cache, 6.5W TDP
Intel® Atom™ x5-E3940 Quad Core @1.6 GHz (Burst 1.8GHz), 2MB L2 Cache, 9.5W TDP
Intel® Atom™ x7-E3950 Quad Core @1.6 GHz (Burst 2.0GHz), 2MB L2 Cache, 12W TDP
Intel® Pentium® N4200 Quad Core @1.1GHz (Burst 2.5GHz), 2MB L2 Cache, 6W TDP
Intel® Celeron® N3350 Dual Core @1.1GHz (Burst 2.4GHz), 2MB L2 Cache, 6W TDP
Intel® Celeron® J3455, Quad Core @1.5GHz (Burst 2.3GHz), 2MB L2Cache, 10W TDP
Intel® Celeron® J3355, Dual Core @2.0GHz (Burst 2.5GHz), 2MB L2Cache, 10W TDP

Single-/Dual-/Quad- Channel Soldered Down LPDDR4-2400 memory, up to 8GB

Up to 3 independent displays
Integrated Intel® HD Grahpics 500 / 505 HD Graphics controller, with up to 18 Execution Units
4K HW decoding and encoding of HEVC(H.265), H.264, VP8, SVC, MVC

eDP interface or Dual Channel 18/24bit LVDS interface through eDP-to-LVDS bridge
HDMI or DP++ interface
DP++ interface
2 x CSI interfaces

DP++ Up to 4096 x 2160 @60HZ

eDP Up to 3840 x 2160 @60Hz

HDMI Up to 3840 x 2160 @30Hz

LVDS Up to 1920 x 1200 @ 60Hz

Optional eMMC 5.0 drive soldered on-board
External S-ATA Gen3 Channel
SD interface

Up to 2 x Gigabit Ethernet interfaces
Intel® I210 or I211 Controller (MAC + PHY)

6 x USB 2.0 Host Ports
2 x USB 3.0 Host Ports

4 x PCI-e Root Ports

HD Audio interface
I2S Audio interface

2x 2-wire HS-UARTs
2x 4-wire UARTs

Up to 14x GPIOs
I2C Bus
SM Bus
2x SPI interfaces
FAN management
Optional TPM 1.2 / 2.0
Power Management Signals

+5VDC and +3.3V_RTC

Microsoft® Windows 10 Enterprise (64 bit)
Microsoft® Windows 10 IoT Core
Linux
Yocto

0°C ÷ +60°C (Commercial version)
-40°C ÷ +85°C (Industrial version)

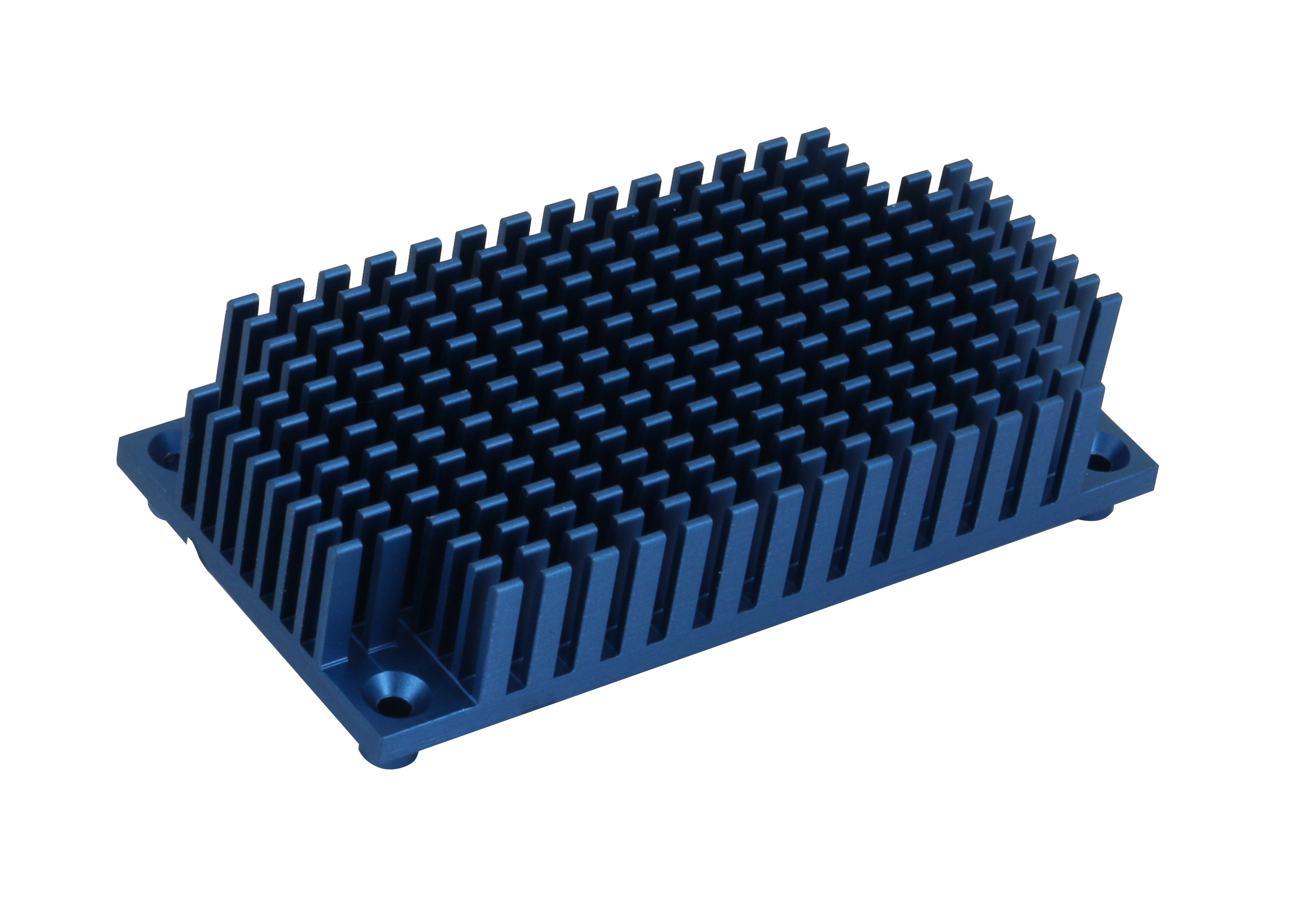

*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
