SOM-COMe-CT6-V1000
搭载 AMD 锐龙™嵌入式 V1000 处理器的 COM Express®Rel. 3.0 紧凑型 6 型模块
Product status
Contact us for more information and quotes

CPU
AMD Ryzen™ Embedded V1000 processors

Graphics
AMD Radeon™ Vega GPU with up to 11 Compute Units DirectX® 12 supported

Connectivity
4x USB 3.0; 8x USB 2.0; 4x PCI-e x1 Gen 3, PEG x8 Gen3

Memory
Up to two DDR4 SO-DIMM Slots supporting DDR4-3200 ECC Memory
Product details
Technical Info
-
Description

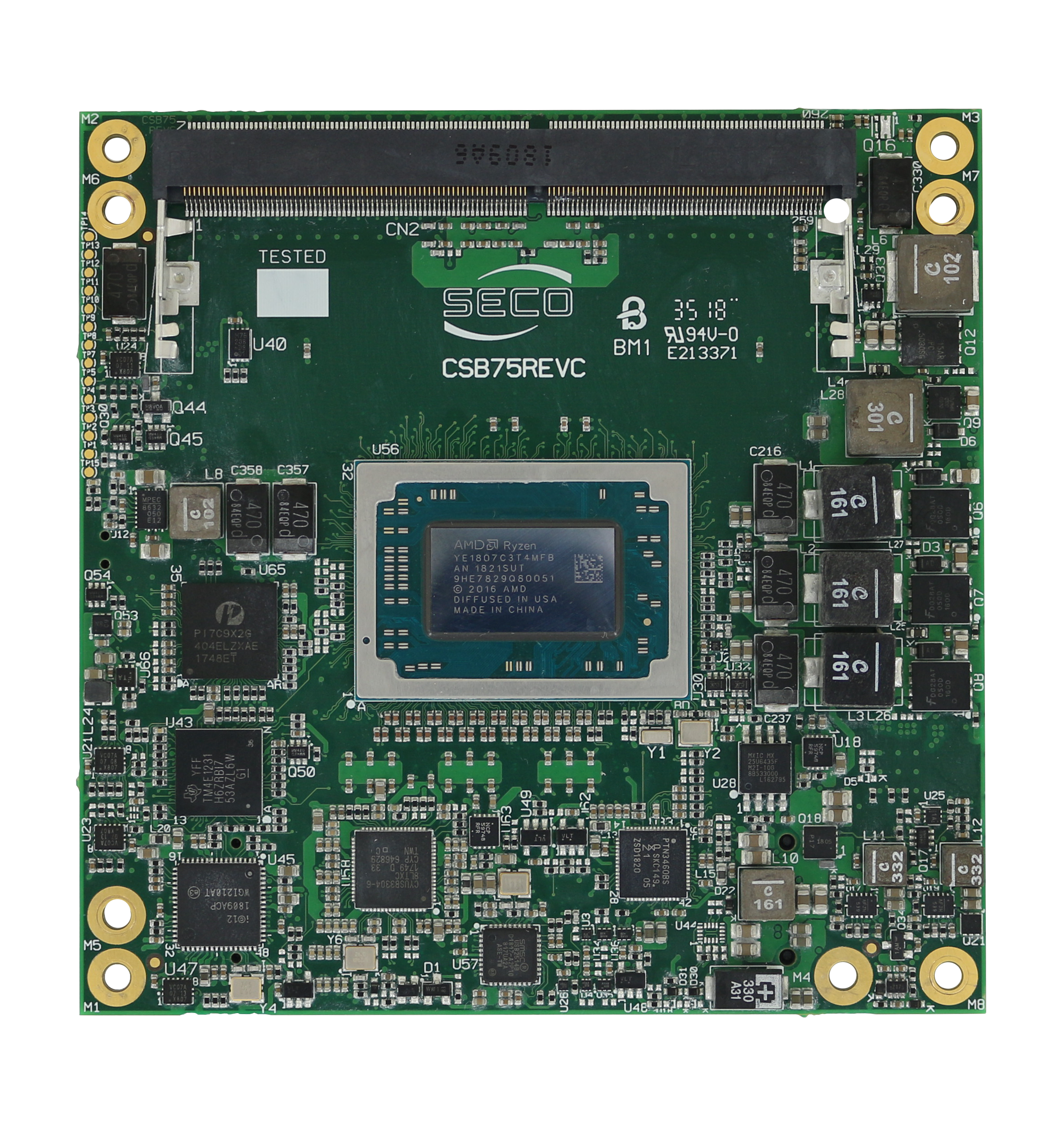

SOM-COMe-CT6-V1000 is a COM Express® Compact Type 6 with the AMD Ryzen™ Embedded V1000 processors designed by SECO mounting up to 4 Zen x86 CPU cores with the latest Radeon graphics and I/O controller on a single chip. It comes with up to two DDR4 SO-DIMM Slots supporting DDR4-3200 ECC Memory, a wide range of expansion ports, PCI-Express, Serial Ports, networking and video interfaces, all of which makes it an ideal solution for medical devices, digital signage, and gaming. -
Processor
AMD Ryzen™ Embedded V1807B with AMD Radeon™ Vega 11 Graphics, Quad Core Dual Thread @ 3.35GHz (3.8 Boost), TDP 35-54W
AMD Ryzen™ Embedded V1756B with AMD Radeon™ Vega 8 Graphics, Quad Core Dual Thread @ 3.25GHz (3.6 Boost), TDP 35-54W
AMD Ryzen™ Embedded V1605B with AMD Radeon™ Vega 8 Graphics, Quad Core Dual Thread @ 2.0GHz (3.6 Boost), TDP 12-25W
AMD Ryzen™ Embedded V1202B with AMD Radeon™ Vega 3 Graphics, Dual Core Dual Thread @ 2.3GHz (3.2 Boost), TDP 12-25W
AMD Ryzen™ Embedded V1404I with AMD Radeon™ Vega 3 Graphics, Quad Core / Single Thread, TDP 15W ,Industrial Temperature range (to be released) -
Chipset
AMD Ryzen™ Embedded V1000 processors
-
Max Cores
4 -
Memory
Up to two DDR4 SO-DIMM Slots supporting DDR4-3200 ECC and non- ECC Memory modules (DDR4-2400 with V1605B, V1202B and V1404I)
Up to 16GB @ 3200Mhz, up to 32GB @ 2400MHz supported
-
Graphics
AMD Radeon™ Vega GPU with up to 11 Compute Units
DirectX® 12 supported
H.265 (10-bit) decode and 8-bit video encode
VP9 decode
4 independent displays supported -
Video Interfaces
3 x Digital Display Interfaces (DDIs), supporting DP 1.3, DVI and HDMI 1.4/2.0
eDP or Single/Dual-Channel 18-/24- bit LVDS interface -
Video Resolution
DDIs, eDP: up to 4K
LVDS: up to 1920 x 1200 -
Mass Storage
2 x S-ATA Gen3 Channels
-
Networking
Gigabit Ethernet interface
Intel® I21x family GbE Controller -
USB
4 x USB 3.0 Host ports
8 x USB 2.0 Host ports -
PCI-e
Up to 4x PCI-e x1 Gen3 lanes + 2 x PCI-e x1 Gen2 ports
PCI-express Graphics (PEG) x 8 Gen3 -
Audio
HD Audio Interface
-
Serial Ports
2 x UARTs
-
Other Interfaces
SPI, I2C bus, SM Bus, LPC bus, FAN management
LID#/SLEEP#/PWRBTN#, Watchdog
4x GPI, 4 x GPOOptional TPM 1.2 module on-board
-
Power Supply
+12VDC ± 10% and + 5VSB (optional)
-
Operating System
Microsoft® Windows 10
Linux -
Operating Temperature
0°C ÷ +60 °C (Commercial version)
-40°C ÷ +85°C (Industrial version)*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
-
Dimensions
95 x 95 mm (Com Express™ Compact Form factor, Type 6 pinout)
Documentation
-
Data Sheet
-
Manual
-
Part Number
-
MB75-6001-2111-C1-V
Part number descriptionCOMe-B75-CT6 w/AMD Ryzen Embedded V1807B @ 3.35GHz - Ethernet Contr. I211 - EDP Port - HUB - Packet Switch - Comm. TempContact us for more informations or quotes
