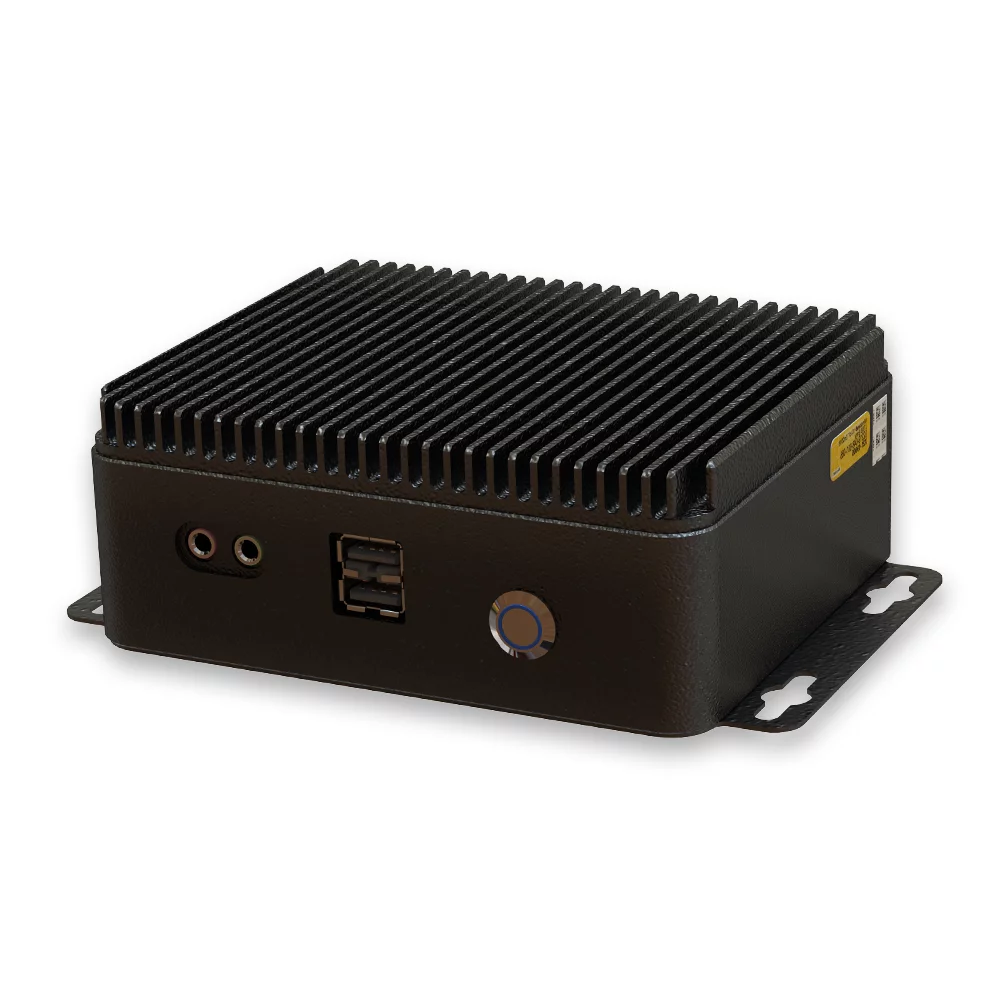

Titan 235 APL

搭载英特尔®凌动™ X 系列(原名 Apollo Lake)处理器的无风扇嵌入式计算机

Product status

Development
Sampling
Production
Available in Industrial Temperature Range

Contact us for more information and quotes

CPU

Intel® Atom™ X Series

Graphics

Integrated Intel® HD Graphics 500 or 505 series controller

Connectivity

2x GbE; WWAN and WLAN M.2 module slots

Memory

Up to 8GB LPDDR4 memory

Product details

Technical Info

  • Description
    搭载英特尔®凌动™ X 系列(原名 Apollo Lake)处理器的无风扇嵌入式计算机
  • Processor

    Intel® Atom™ x7-E3950 Quad Core @1.6 GHz (Burst 2.0GHz), 2MB L2 Cache, 12W TDP
    Intel® Atom™ x5-E3940 Quad Core @1.6 GHz (Burst 1.8GHz), 2MB L2 Cache, 9.5W TDP
    Intel® Atom™ x5-E3930 Dual Core @1.3 GHz (Burst 1.8GHz), 2MB L2 Cache, 6.5W TDP

  • Memory

    Quad Channel soldered down LPDDR4 memory, up to 8GB

  • Graphics

    Integrated Intel® HD Graphics 500 or 505 series controller, with up to 18 Execution Units
    4K HW decoding and encoding of HEVC(H.265), H.264, VP8, SVC, MVC
    Dual independent display

  • Video Interfaces

    Two multimode Display Port on miniDP++ connectors

  • Video Resolution

    Up to 4096 x 2160

  • Mass Storage

    Optional eMMC drive onboard
    Optional SATA M.2 SSD module up to 512 GB

  • Networking

    2 x Gigabit Ethernet ports
    M.2 Socket 2 Key B Slot for Modem modules (alternative to M.2 SSD), connected to internal microSIM Slot
    M.2 Socket 1 Key E Slot for WiFi/BT modules

  • USB

    2 x USB 3.0 Type-A sockets on Front Panel
    2 x USB 2.0 Type-A sockets on Rear Panel

  • Audio

    Internal HD Audio codec Cirrus Logic CS4207
    Mic In and Line Out Audio jacks

  • Serial Ports

    2x RS-232/RS-422/RS-485 ports, software configurable, DB9 male connectors

  • Other Interfaces

    Power Button
    Power On Status LED



    OPTIONAL ACCESSORIES:
    miniDP++ to HDMI adapter
    Customised bracket for wall mount

  • Power Supply

    PCB terminal block, type Phoenix 1990973
    +18VDC ÷ +32VDC recommended
    +15VDC ÷ +36VDC absolute

  • Operating System

    Preinstalled OS (operating options):
    Microsoft® Windows 10 IoT entry
    Linux


    Available on request:
    Wind River Linux (64-bit)
    Yocto (64-bit)
    Android (planning)

  • Operating Temperature

    *With internal SSD,  0°C ÷ +60°C (in presence of air flow)

    *Without internal SSD, -40°C÷+60°C (in presence of air flow) **


    *Environment temperature measured near the heatsink 's fins. Upon costumer to verify that the temperature remains within the admissible range.

    ** Temperature range below 0°C tested on the SBC only.

  • Dimensions
    162.3 x 110 x 52.4 mm

Part Number

  • SYS-B68-IPC-8C25-1011-I3

    Part number description
    SYS-B68-IPC - Intel Atom E3950, 8GB RAM, 8GB eMMC, 512GB SSD, Win 10 IoT Ent
    Contact us for more informations or quotes
    联系我们

Related Products

KTMX-WIFIM2-001.00

Wi-Fi Kit M.2 Module

Production

View Product
KTMX-LTEM2-001.00

LTE Kit M.2

Production

View Product

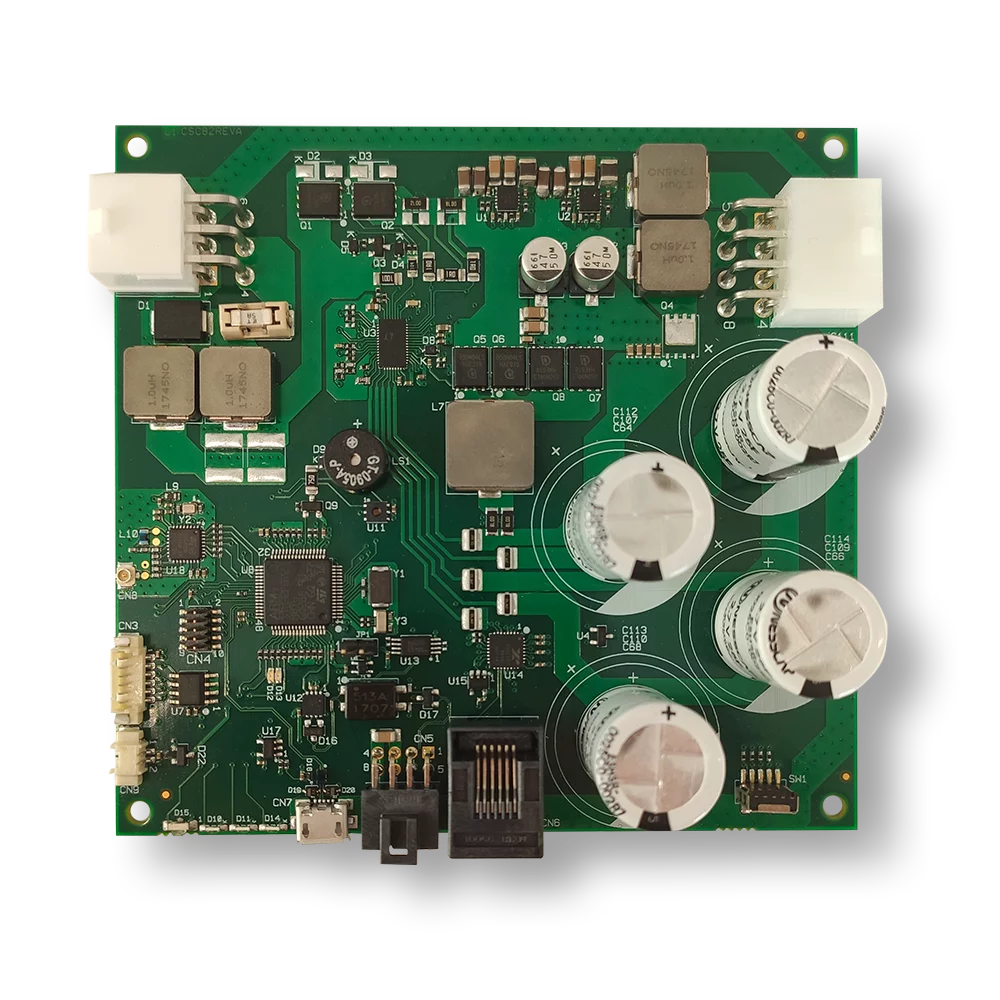

VC82 Micro-Ups
