Titan 220 APL Med
搭载英特尔®凌动™ x5-E3930 处理器的医疗用盒式网关
Product status
Contact us for more information and quotes
CPU
Intel® Atom™ X Series
Graphics
Integrated Intel® HD Graphics 500 controller
Connectivity
2x GbE + 1 x 4kV insulated GbE; WWAN and WLAN M.2 module slots
Memory
Up to 8GB LPDDR4 memory
Product details
Technical Info
-
Description
Boxed Gateway for Medical applications based on the Intel® Atom™ x5-E3930. Compliance with medical standards: IEC 60601-1 IEC 60601-1-2 IEC 60601-1-6 IEC 62366 -
Processor
Intel® Atom™ x5-E3930 Dual Core @1.3 GHz (Burst 1.8GHz), 2MB L2 Cache, 6.5W TDP
-
Memory
Quad Channel soldered down LPDDR4 memory, up to 8GB
-
Graphics
Integrated Intel® HD Graphics 500 series controller, with 12 Execution Units
4K HW decoding and encoding of HEVC(H.265), H.264, VP8, SVC, MVC
Dual independent display -
Video Interfaces
Two multimode Display Port on miniDP++ connectors
-
Video Resolution
Up to 4096 x 2160
-
Mass Storage
eMMC drive onboard, up to 64 GB
Optional SATA M.2 SSD module up to 512GB -
Networking
2x Gigabit Ethernet ports
1x 4kV insulated Gigabit Ethernet port
M.2 Socket 2 Key B Slot for Modem modules (not provided by SECO. To be used as alternative to M.2 SSD), connected to internal microSIM Slot
M.2 Socket 1 Key E Slot for WiFi/BT modules -
USB
2 x USB 3.0 Type-A sockets on Front Panel
-
Other Interfaces
Power Button
Power On Status LEDOPTIONAL ACCESSORIES:
miniDP++ to HDMI adapter
Customised bracket for VESA Panel mount -
Power Supply
DC Power jack, with cable restraint,type DC-062-4-2.5-S214
+18VDC ÷ +32 VDC recommended
+15VDC ÷ +36 VDC absolute -
Operating System
Linux
EDGEHOG (under development) -
Operating Temperature
0°C ÷ +40°C (in presence of air flow)
-
Dimensions
162.3 x 109.3 x 42.4 mm
Software
Documentation
-
Data Sheet
-
Part Number
-
SYS-D14-MED-3211-1W20-C1
Part number descriptionSYS-D14-MED, Intel Atom E3930, 4GB RAM, 16GB eMMC, WiFi/BT, Linux OSContact us for more informations or quotes
联系我们 -
SYS-D14-MED-4321-1W20-C1
Part number descriptionSYS-D14-MED, Intel Atom E3940, 8GB RAM, 32GB eMMC, WiFi/BT, Linux OSContact us for more informations or quotes
联系我们
![[Picture] DRACO_front](/Product%20images%20da%20scaricare/Smart%20Edge%20Computing/SYS-D14_front_hires.jpg){kind=link}

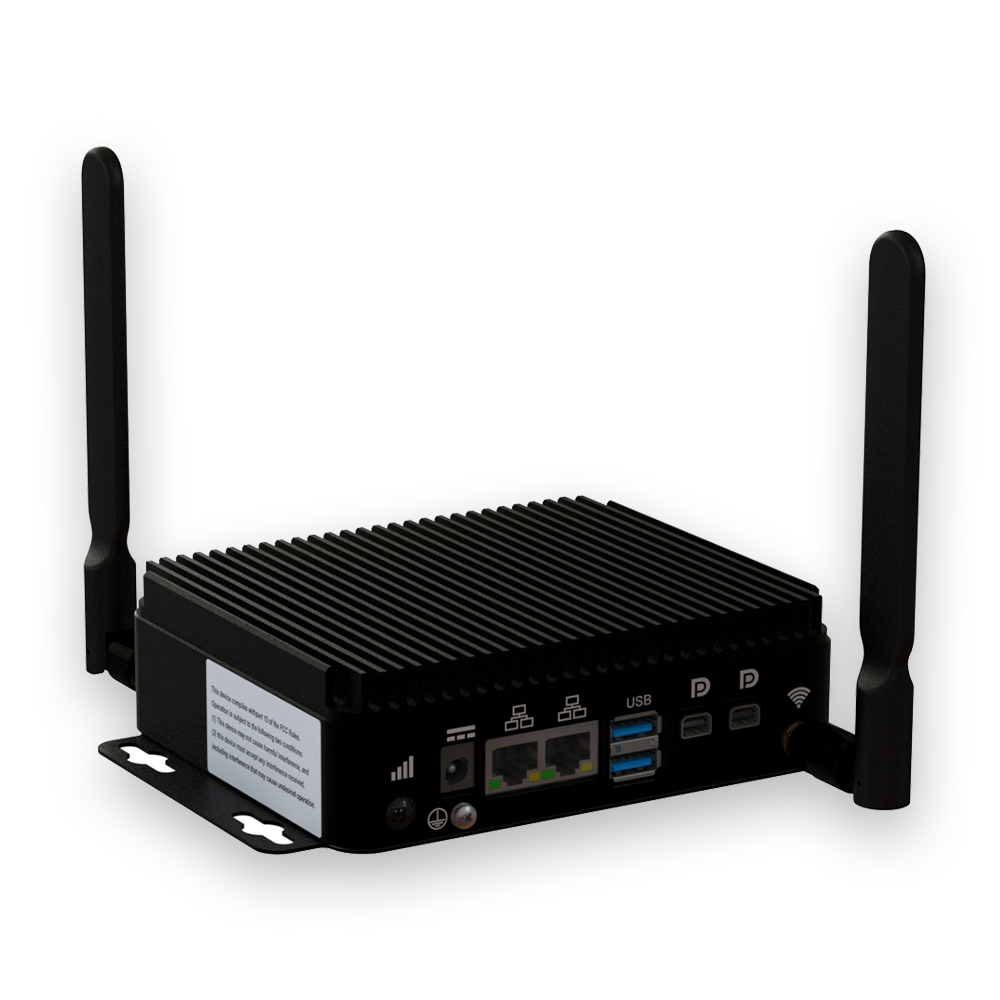

![[Picture] DRACO_back](/Product%20images%20da%20scaricare/Smart%20Edge%20Computing/SYS-D14_back_hires.jpg){kind=link}
