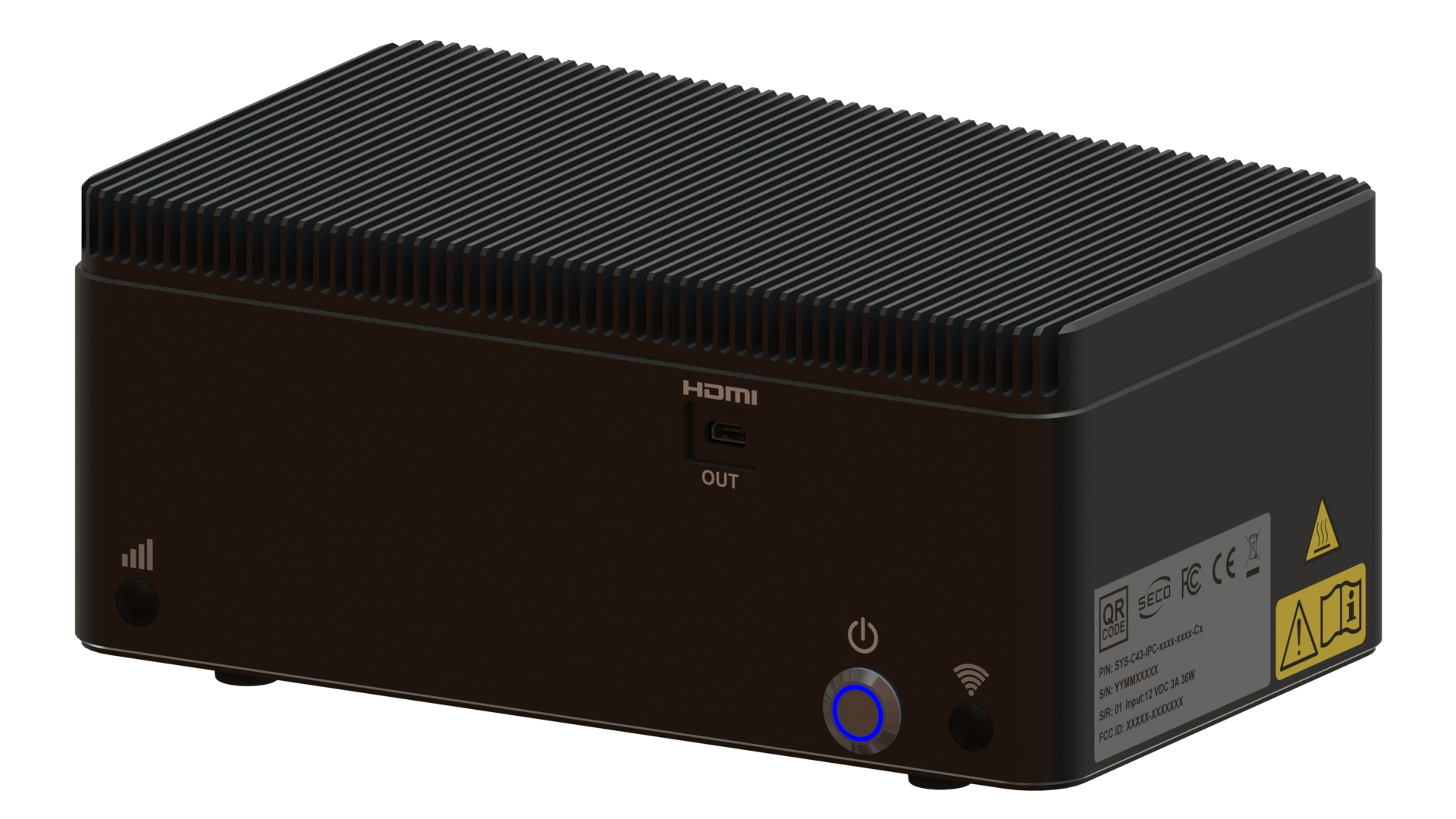

Titan 200 MX8

搭载恩智浦 i.MX 8 应用处理器的无风扇嵌入式计算机

Product status

Development
Sampling
Production

Contact us for more information and quotes

CPU

NXP i.MX 8 Family

Graphics

Dual Vivante GC7000 GPU / Dual Vivante GC7000Lite GPU

Connectivity

2x GbE; 1x USB3.0; 1x USB2.0; 1x RS-232; 1x multistandard RS-485 / RS-422; Optional WiFi+BT add-on module; Optional WWAN add-on module

Memory

Up to 8GB LPDDR4-1600 on-board memory

Product details

Technical Info

  • Description
    搭载恩智浦 i.MX 8 应用处理器的无风扇嵌入式计算机
  • Processor

    i.MX 8 QuadMax: Dual A72-core, Quad A53-core, Dual M4F-core
    i.MX 8 QuadPlus: Single A72-core, Quad A53-core, Dual
    M4F-core

  • Memory

    64-bit soldered down LPDDR4-1600 memory, up to 8GB

  • Graphics

    2x Graphics accelerators Vivante GC7000 / XVSX for QuadMax
    and GC7000Lite / XVSX for QuadPlus
    1x embedded VPU, supporting H.265 (4K30) and H.264
    (1080p60) decoding and H.264 (1080p30) encoding

  • Video Interfaces

    HDMI 2.0a Tx interface

  • Video Resolution

    Up to 4K

  • Mass Storage

    Optional eMMC 5.1 drive on-board, up to 64GB
    M.2 Key B slot for optional SSD drive, up to 512GB
    microSD card slot (accessible from panel)

  • Networking

    2x Gigabit Ethernet RJ45 connectors
    M.2 WLAN Connectivity Slot for optional accessory WiFi + BT
    external module, external antennas
    M.2 WWAN Connectivity Slot for optional accessory Modem
    modules (excludes SSD Drive), external antennas

  • USB

    1 x USB 3.0 Host port on Type-A socket
    1 x USB 2.0 Host port on Type-A socket
    1 x USB 2.0 micro-AB connector (OTG)

  • Audio

    Out + Mic In combo TRRS audio jack

  • Serial Ports

    1 x RS-232 port on DB9-M connector
    1 x multistandard RS-485 / RS-422 port on DB9-M connector

  • Other Interfaces

    Optional 2x 12 poles terminal block connectors with the
    following I/O:
    • 2x CAN
    • 4x GPIOs
    • 4x Analog Inputs
    • 1x SPI
    • 1x I2C
    • 1x 5V
    • 1x 3.3V
    • 1x 12V
    • 3x GND
    Power ON Button with integrated LED
    microSIM slot soldered on-board for the Modem
    Coin cell battery holder for RTC
    Optional 4x SMA connectors for external WiFi / WWAN antennas

  • Power Supply

    +12VDC, Mini-Fit Power connector

  • Operating System

    Linux
    Android (planned)

  • Operating Temperature

    0°C ÷ +50°C

  • Dimensions
    81 x 109 x 75 mm

Part Number

  • Titan 200 MX8

    Part number description
    搭载恩智浦 i.MX 8 应用处理器的无风扇嵌入式计算机
