SOM-uQ7-MX8M-Mini-Nano

搭载恩智浦 i.MX 8M 迷你处理器和恩智浦 i.MX 8M 纳米处理器的 μQseven® 标准模块

Product status

Development
Sampling
Production

Contact us for more information and quotes

CPU

NXP i.MX 8M Mini Family / i.MX 8M Nano Family

Graphics

GC320 2D accelerator + GCNanoUltra 3D accelerator

Connectivity

Gigabit Ethernet; opt. Wi-Fi +BT 5.0; 2 x UART; opt. CAN; 5x USB 2.0; 1 PCI-e x1

Memory

Soldered on-board DDR4-2400 Memory

Product details

Technical Info

  • Description
    搭载恩智浦 i.MX 8M 迷你处理器和恩智浦 i.MX 8M 纳米处理器的 μQseven® 标准模块
  • Processor

    NXP i.MX 8M Mini Family based on ARM® Cortex®-A53 cores + general purpose Cortex®-M4 400MHz processor:

    i.MX 8M Mini Quad – Full featured, 4x Cortex®-A53 cores up to 1.8GHz

    i.MX 8M Mini Dual – Full featured, 2x Cortex®-A53 cores up to 1.8GHz

    i.MX 8M Mini Solo – Full featured, 1x Cortex®-A53 cores up to 1.8GHz

    i.MX 8M Mini Quad Lite – 4x Cortex®-A53 cores up to 1.8GHz, no VPU

    i.MX 8M Mini Dual Lite – 2x Cortex®-A53 cores up to 1.8GHz, no VPU

    i.MX 8M Mini Solo Lite – 1x Cortex®-A53 cores up to 1.8GHz, no VPU



    NXP i.MX 8M Nano Family based on ARM® Cortex®-A53 cores + general purpose Cortex®-M7 750MHz processor:

    i.MX 8M Nano Quad – Full featured, 4x Cortex®-A53 cores up to 1.5GHz

    i.MX 8M Nano Dual – Full featured, 2x Cortex®-A53 cores up to 1.5GHz

    i.MX 8M Nano Solo – Full featured, 1x Cortex®-A53 cores up to 1.5GHz

    i.MX 8M Nano Quad Lite – 4x Cortex®-A53 cores up to 1.5GHz, no VPU

    i.MX 8M Nano Dual Lite – 2x Cortex®-A53 cores up to 1.5GHz, no VPU

    i.MX 8M Nano Solo Lite – 1x Cortex®-A53 cores up to 1.8GHz, no VPU

  • Chipset

    Chipset Description

  • Max Cores
    4+1
  • Memory

    Soldered Down onboard DDR4 memory:

    Up to 4GB of DDR4-2400, 32-bit bus memory (i.MX8M Mini)

    Up to 2GB of DDR4-2400, 16-bit bus memory (i.MX8M Nano)

  • Graphics

    i.MX 8M Mini Family of processors:
    Vivante GC320 2D accelerator + GCNanoUltra 3D accelerator
    OpenGL ES 2.0, OpenVG 1.1 support

    i.MX 8M Nano Family of processors:
    Vivante GC7000UL 2D/3D GPU
    OpenGL ES 3.1, OpenCL1.2, Vulkan support

    Only for i.MX 8M Mini Family, not for Lite processors, embedded VPU able to offer:

    VP9, HEVC/H.265, AVC/H.264, VP8 HW Decoding

    AVC/H.264, VP8 HW encoding

  • Video Interfaces

    Single/Dual Channel 18/24 bit LVDS interface or eDP interface

  • Video Resolution

    Up to 1920 x 1080p

  • Mass Storage

    eMMC 5.1 drive on-board, up to 64GB
    SD / MMC / SDIO interface
    Optional QSPI Flash for booting

  • Networking

    Gigabit Ethernet interface
    Optional WiFi 802.11 a/b/g/n/ac +BT 5.0 NGFF module soldered on-board

  • USB

    5x USB 2.0 Host ports (i.MX 8M Mini)
    4x USB 2.0 Host ports (i.MX 8M Nano)

  • PCI-e

    1 x PCI Express x 1 lane (only with i.MX 8M Mini)

  • Audio

    I2S Audio Interface

  • Serial Ports

    1x 4-wire UART + 1 x Debug UART
    Optional CAN interface

  • Other Interfaces

    SPI interface
    Watchdog
    8x GPIO
    SM Bus
    I2C interface

  • Power Supply

    +5VDC and +5VSB (optional)

  • Operating System

    Linux (Yocto)

  • Operating Temperature

    0°C  ÷ +60 °C (commercial temp.)*
    -30°C ÷ +85°C (Extended temp.)*



    *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

  • Dimensions
    40x70 mm (1.57” x 2.76”)

Part Number

  • QC72-1130-1101-C2

    Part number description
    μQ7-C72 w/NXP i.MX8M Mini Quad, 4GB DDR4 (2x16Gb), 16GB eMMC, LVDS, CAN, QSPI, Comm.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-1130-1101-I2

    Part number description
    μQ7-C72 w/NXP i.MX8M Mini Quad, 4GB DDR4 (2x16Gb), 16GB eMMC, LVDS, CAN, QSPI, Ind.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-1140-1111-C2

    Part number description
    μQ7-C72 w/NXP i.MX8M Mini Quad, 4GB DDR4 (2x16Gb), 32GB eMMC, LVDS, CAN, WiFi/BLE, QSPI, Comm.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-3220-1101-C2

    Part number description
    μQ7-C72 w/NXP i.MX8M Mini Dual, 2GB DDR4 (2x8Gb), 8GB eMMC, LVDS, CAN, QSPI, Comm.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-3220-1101-I2

    Part number description
    μQ7-C72 w/NXP i.MX8M Mini Dual, 2GB DDR4 (2x8Gb), 8GB eMMC, LVDS, CAN, QSPI, Ind.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-5510-1000-C2

    Part number description
    μQ7-C72 w/NXP i.MX8M Mini Solo, 1GB DDR4 (1x8Gb), 4GB eMMC, LVDS, Comm.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-5520-1101-I2

    Part number description
    μQ7-C72 w/NXP i.MX8M Mini Solo, 1GB DDR4 (1x8Gb), 8GB eMMC, LVDS, CAN, QSPI - Ind.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-A520-1101-C2

    Part number description
    μQ7-C72 w/NXP i.MX8M Nano DualLite, 1GB DDR4 (1x8Gb), 8GB eMMC, LVDS, CAN, QSPI - Comm.Temp
    Contact us for more informations or quotes
    联系我们
  • QC72-C510-1000-C2

    Part number description
    μQ7-C72 w/NXP i.MX8M Nano SoloLite, 1GB DDR4 (1x8Gb), 4GB eMMC, LVDS - Comm.Temp
    Contact us for more informations or quotes
    联系我们

Related Products

CQ7-A42

Qseven® rel. 2.0 Compliant Carrier Board on 3.5” Form factor

Production

View Product
[Image] Q7 STARTER KIT 2.0
Q7 STARTER KIT 2.0

Cross Platform Starter Kit compatible with both x86 and Arm Rev. 2.0 Qseven® modules: a complete package including the basic components necessary to start developing

Production

View Product
[Picture] Q7 Dev Kit 2.0
Q7 DEV KIT 2.0

Cross Platform Development Kit for Qseven® philosophy, compatible with both x86 and Arm Rev. 2.0 Qseven® modules

Production

View Product
QC72-DISS-1-PK

μQ7-C72 Heat Spreader Kit - Packaged

Production

View Product
QC72-DISS-2-PK

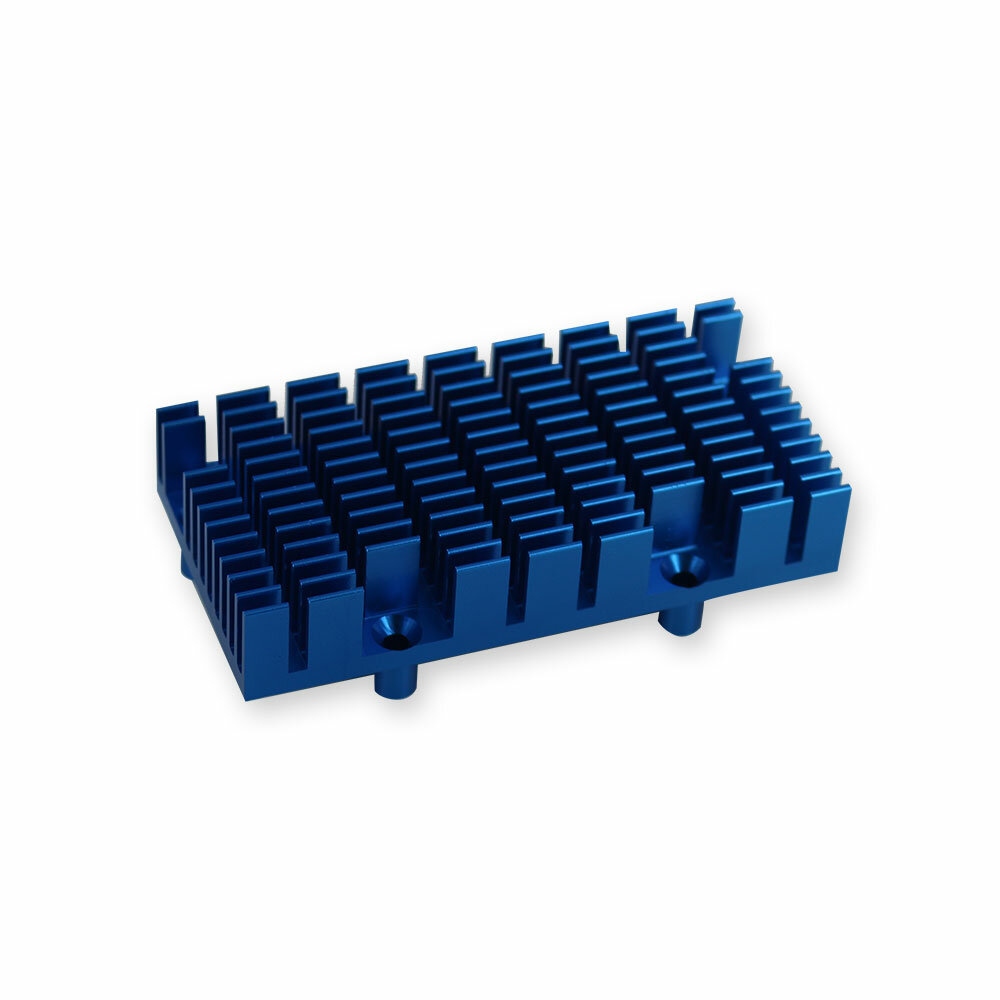

μQ7-C72 Heat Sink Kit - Packaged
