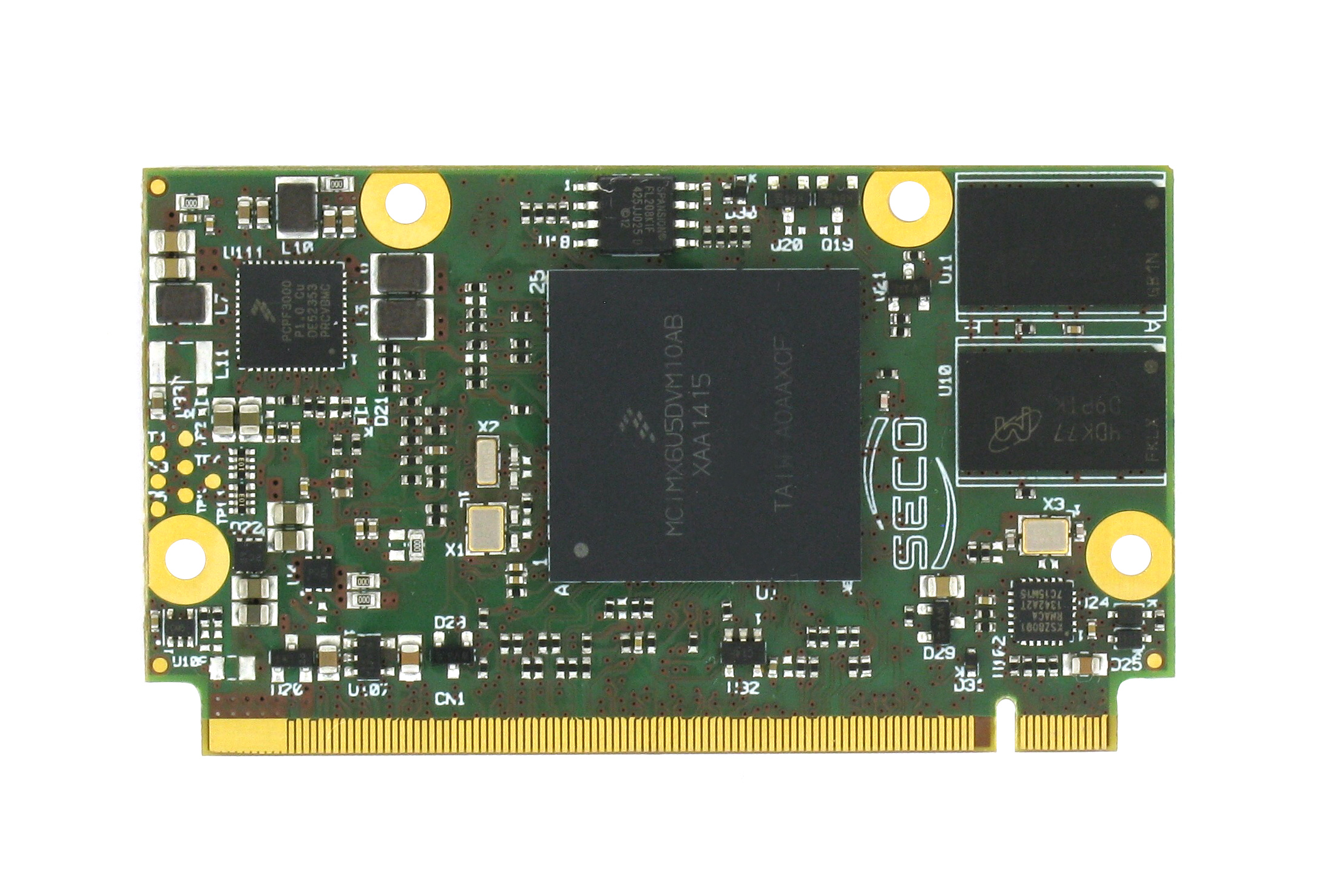

SOM-uQ7-MX6-2

搭载恩智浦 i.MX 6 处理器的 μQseven® 模块

Product status

Development
Sampling
Production
Available in Industrial Temperature Range

Contact us for more information and quotes

CPU

Single and Dual Core Lite (ARM Cortex™A9 Cores)

Graphics

2D/3D dedicated graphics processors

Connectivity

FastEthernet; GPI/Os

Memory

up to 1GB DDR3L on-board

Product details

Technical Info

  • Description
    The extremely low power and low cost μQseven Rev. 2.0 Compliant Module with the NXP i.MX 6 Processor features all the processor and integrated native I/O capabilities of the SoC, in compliance with the Qseven standard, at the competitive cost of a proprietary module. This board is supplied with a complete and fully-featured BSP, for easy migration from, and to, the entire i.MX 6 product family, along with dedicated hardware and software development support.
  • Processor

    NXP i.MX 6 Family, based on ARM® CORTEX-A9 processors

    i.MX6S Solo - Single core up to 1GHz
    i.MX6DL Dual Lite - Dual core up to 1GHz per core

  • Max Cores
    2
  • Memory

    Up to 1GB DDR3L on-board (up to 512MB with i.MX6S Solo) 32-bit I/F

  • Graphics

    Dedicated 2D Hardware accelerator
    Dedicated 3D Hardware accelerator, supports OpenGL® ES2.0 3D
    Supports 2 independent displays

  • Video Interfaces

    1 x LVDS Dual Channel or 2 x LVDS Single Channel 18 / 24 bit interface
    HDMI Interface

  • Video Resolution

    LVDS, resolution up to 1920x1200
    HDMI, resolution up to 1080p

  • Mass Storage

    On-board eMMC drive, up to 8 GB
    SD / MMC / SDIO interface
    Internal SPI Flash for booting

  • Networking

    Fast Ethernet (10/100) interface

  • USB

    1 x USB OTG interface
    1 x USB 2.0 Host interface

  • PCI-e

    1 x PCI-e x1 lane (only PCI-e 1.1 and Gen2 are supported)

  • Audio

    I2S / AC’97 Audio Interface

  • Other Interfaces

    On the card edge connector, many pins can be used as General Purpose I / Os or to implement some(*) of the following extra functionalities:
    - Additional SD interface
    - Up to 4 UARTs
    - CAN interface
    - Watchdog(s)
    - I2C interfaces
    - PWM outputs
    - SPI interface
    - Additional Audio interface

    (*) not all the combinations are allowed simultaneously Power Management Signals

  • Power Supply

    +5VDC ± 5%
    Optional Low Power RTC

  • Operating System

    Linux
    Yocto

  • Operating Temperature

    0°C  ÷ +60 °C (commercial temp.)*
    -40°C ÷ +85°C (Industrial temp.)*



    *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

  • Dimensions
    40x70 mm (1.57” x 2.76”)

Part Number

  • QA75-1110-1000-C0-V

    Part number description
    µQ7-A75-J w/i.MX6 Solo - RAM DDR3L 256MB single chip - eMMC 4GB - RTC Low Power - Comm.Temp
    Contact us for more informations or quotes
    联系我们
  • QA75-1110-1000-I0-V

    Part number description
    µQ7-A75-J w/i.MX6 Solo - RAM DDR3L 256MB single chip - eMMC 4GB - RTC Low Power - Ind.Temp
    Contact us for more informations or quotes
    联系我们
  • QA75-2410-1000-C0-V

    Part number description
    µQ7-A75-J w/i.MX6 DualLite - RAM DDR3L 1GB dual chip - eMMC 4GB - RTC Low Power - Comm.Temp
    Contact us for more informations or quotes
    联系我们

Related Products

CQ7-A42

Qseven® rel. 2.0 Compliant Carrier Board on 3.5” Form factor

Production

View Product
[Image] Q7 STARTER KIT 2.0
Q7 STARTER KIT 2.0

Cross Platform Starter Kit compatible with both x86 and Arm Rev. 2.0 Qseven® modules: a complete package including the basic components necessary to start developing

Production

View Product
[Picture] Q7 Dev Kit 2.0
Q7 DEV KIT 2.0

Cross Platform Development Kit for Qseven® philosophy, compatible with both x86 and Arm Rev. 2.0 Qseven® modules

Production

View Product
QA75-DISS-1-PK

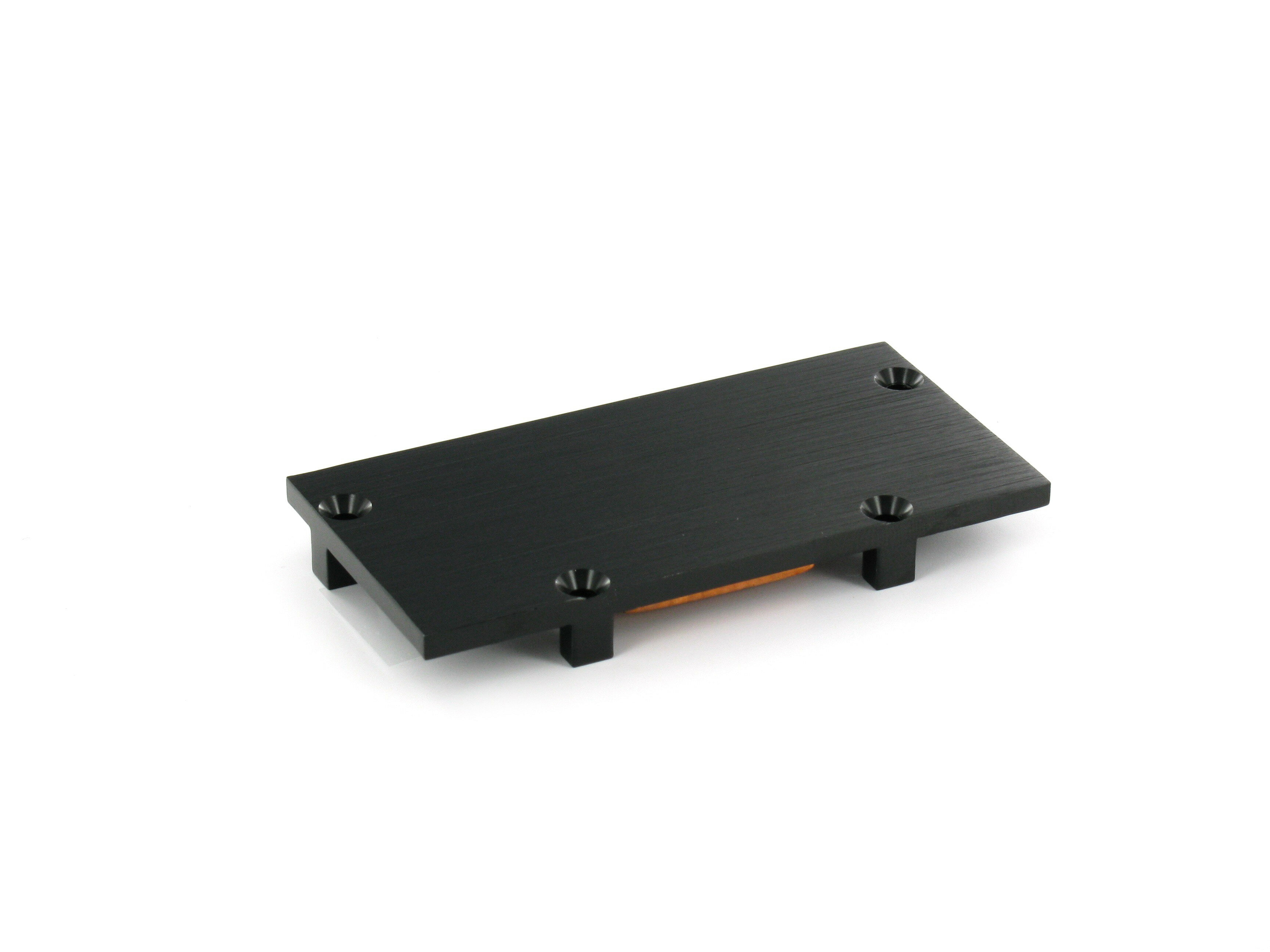

Q7 HEAT SPREADER: uQ7-A75-J Solo & Dual Heat Spreader (PASSIVE)

Production

View Product
QA75-DISS-2-PK

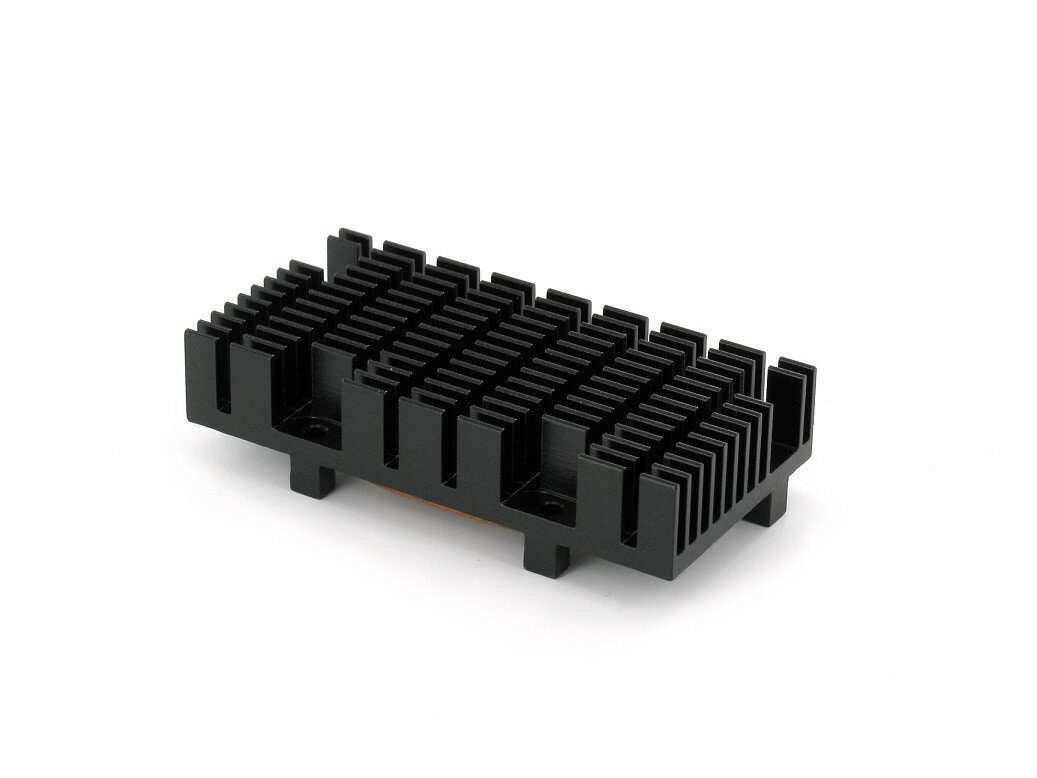

Q7 HEAT SINK: µQ7 w / i.MX6 Solo & Dual Heat Sink (PASSIVE)
