SOM-uQ7-BT

搭载英特尔®凌动™ E3800 和赛扬®(原名 Bay Trail)处理器的 μQseven Rel.2.0 模块

Product status

Development
Sampling
Production

Contact us for more information and quotes

CPU

Intel® Atom™ E3800 and Celeron® families

Graphics

Integrated Intel® HD Graphics 4000 Series controller

Connectivity

4x USB 2.0; 1x USB 3.0; 3x PCI-e x1; LPC Bus

Memory

up to 4GB Single Channel DDR3L memory

Product details

Technical Info

  • Description
    μQseven Rev. 2.0 Compliant Module with the Intel® Atom™ E3800 and Celeron® families. The smallest Intel 64-bit SoC based standard module on the market offering a very high level of performance-to-power ratio for compact or portable devices. Ideal as an Industrial Internet of Things (IIoT) basic building block. It is a cost effective solution for low budget designs.
  • Processor

    Intel® Atom™ E3825, Dual Core @1.33GHz, 1MB Cache, 6W TDP
    Intel® Atom™ E3815, Single Core @1.46GHz, 512KB Cache, 5W TDP
    Intel® Celeron® N2807, Dual Core @1.58GHz, 1MB Cache, 4.3W TDP

  • Max Cores
    2
  • Max Threads
    2
  • Memory

    Soldered onboard DDR3L memory
    E3825, E3815:  up to 4GB Single-Channel DDR3L @ 1066MHz
    N2807: up to 4GB Single-Channel DDR3L @ 1333MHz

  • Graphics

    Integrated Intel® HD Graphics 4000 Series controller
    Dual independent display support
    HW decoding of H.264, MPEG2, MVC, VC1, VP8, MJPEG formats
    HW encoding of H.264, MPEG2 and MVC formats

  • Video Interfaces

    Multimode Display Port (DP++) interface
    18 / 24 bit Dual Channel LVDS interface

  • Video Resolution

    DP++ (HDMI compatible) Up to 2560x1600@60Hz

    LVDS interface Up to 1920x1200@60Hz

  • Mass Storage

    2 x external S-ATA channels
    SD interface
    Optional eMMC drive soldered onboard

  • Networking

    Gigabit Ethernet interface

  • USB

    1 x USB 3.0 Host port
    4 x USB 2.0 Host ports (one shared with USB 3.0 interface)

  • PCI-e

    3 x PCI-e x1 lanes (Gen2)

  • Audio

    HD Audio Interface

  • Serial Ports

    1 x Serial Port (TTL interface, Tx/Rx only)

  • Other Interfaces

    I2C bus
    LPC Bus
    SM Bus
    Thermal / FAN Management
    PWR Management signals

  • Power Supply

    +5VDC ± 5%

  • Operating System

    Microsoft® Windows 7
    Microsoft® Windows 8.1
    Microsoft® Windows 10
    Microsoft® Windows 10 IoT
    Microsoft® Windows Embedded Standard 7
    Microsoft® Windows Embedded Compact 7
    Linux
    Yocto

  • Operating Temperature

    0°C ÷ +60°C

    *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

  • Dimensions
    40 x 70 mm (1.57 x 2.76)

Software

Part Number

  • QA76-8330-0000-C0-V

    Part number description
    µQ7-A76-J w/Bay Trail-M N2807 @1.58 GHz DC - RAM DDR3L 2GB - eMMC 16GB - DP++, LVDS - Comm. Temp
    Contact us for more informations or quotes
    联系我们
  • QA76-B300-0000-C0-V

    Part number description
    µQ7-A76-J w/Bay Trail-M N2807 (D1) @1.58 GHz DC - RAM DDR3L 2GB - Comm. Temp
    Contact us for more informations or quotes
    联系我们

Related Products

CQ7-A42

Qseven® rel. 2.0 Compliant Carrier Board on 3.5” Form factor

Production

View Product
[Picture] Q7 Dev Kit 2.0
Q7 DEV KIT 2.0

Cross Platform Development Kit for Qseven® philosophy, compatible with both x86 and Arm Rev. 2.0 Qseven® modules

Production

View Product
[Image] Q7 STARTER KIT 2.0
Q7 STARTER KIT 2.0

Cross Platform Starter Kit compatible with both x86 and Arm Rev. 2.0 Qseven® modules: a complete package including the basic components necessary to start developing

Production

View Product
QA76-DISS-2-PK

Q7 HEAT SINK: µQ7-A76-J Heat Sink (PASSIVE) Packaged

Production

View Product
QA76-DISS-1-PK

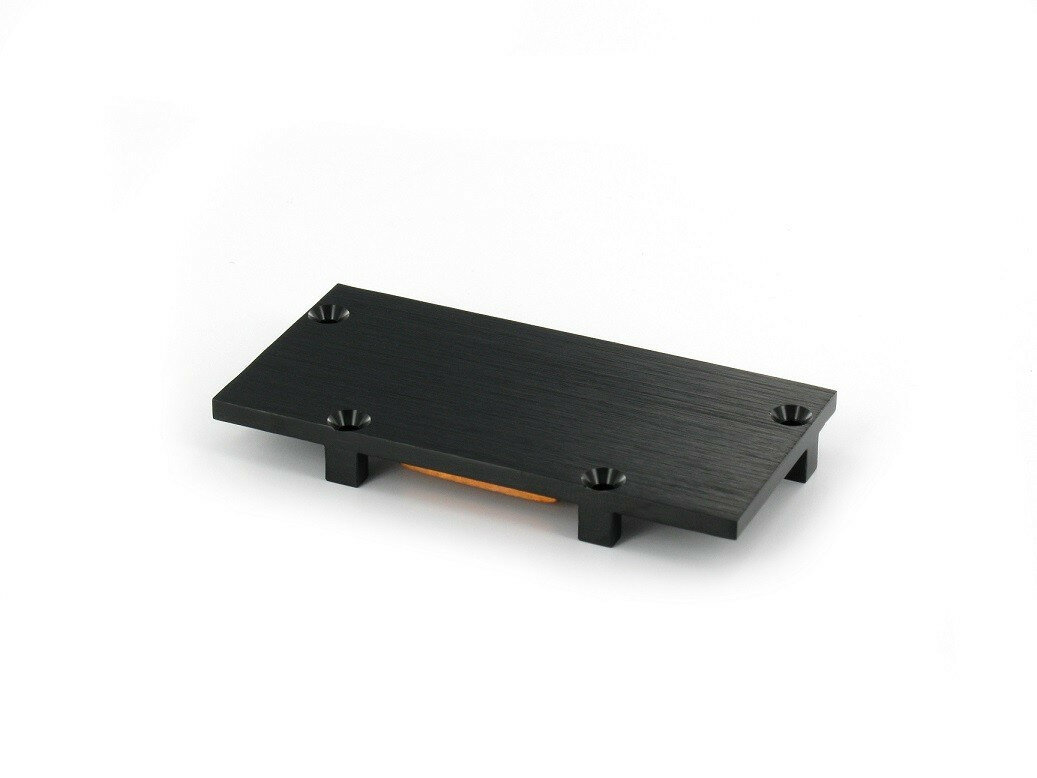

Q7 HEAT SPREADER: µQ7-A76-J Heat Spreader (PASSIVE) Packaged
