SOM-Q7-MX6

搭载恩智浦 i.MX 6 处理器的 Qseven® 模块

Product status

Development
Sampling
Production
Available in Industrial Temperature Range

Contact us for more information and quotes

CPU

Single-, Dual- and Quad- Core (ARM® Cortex® -A9 Cores)

Graphics

2D/3D dedicated graphics processors

Connectivity

2x serial ports; CAN port

Memory

up to 4GB DDR3L on-board

Product details

Technical Info

  • Description
    SOM-Q7-MX6 is a Qseven® Rel. 2.0 Compliant Module designed by SECO that offers top computational and graphical performances given by low-power consuming ARM architecture. The board integrates i.MX6 Multimedia Applications platform from NXP, a multimedia processor integrating a multicore Cortex® A9 ARM Core (up to Quad Core processors), ideal for applications requiring multimedia capabilities and/or high levels of parallel computing.
  • Processor

    NXP i.MX 6 Family, based on ARM® CORTEX-A9 processors
    i.MX6S Solo - Single core up to 1GHz
    i.MX6DL Dual Lite - Dual core up to 1GHz per core
    i.MX6D Dual - Dual core up to 1GHz per core
    i.MX6DP DualPlus - Dual core up to 1GHz per core
    i.MX6Q Quad - Quad core up to 1GHz per core

  • Max Cores
    4
  • Memory

    Up to 4GB DDR3L on-board (up to 2GB with i.MX6S)

  • Graphics

    Dedicated 2D Hardware accelerator
    Dedicated 3D Hardware accelerator, supports OpenGL® ES 2.0 3D
    Dedicated Vector Graphics accelerator supports OpenVG™ (only i.MX6D, i.MX6DP and i.MX6Q)
    Enhanced 2D and 3D graphics with i.MX6DP
    Supports up to 3 independent displays with i.MX6D, i.MX6DPand i.MX6Q
    Supports 2 independent displays with i.MX6DL and i.MX6S

  • Video Interfaces

    1 x LVDS Dual Channel or 2 x LVDS Single Channel 18 / 24 bit interface
    HDMI Interface 1.4
    Video Input Port / Camera Connector

  • Video Resolution

    LVDS  up to 1920x1200
    HDMI  up to 1080p

  • Mass Storage

    On-board eMMC drive, up to 32 GB
    SD / MMC / SDIO interface
    1 x μSD Card Slot on-board
    1 x External SATA Channel (only available with i.MX6D and i.MX6Q)

  • Networking

    Gigabit Ethernet interface

  • USB

    1 x USB OTG interface
    4 x USB 2.0 Host interfaces

  • PCI-e

    1 x PCI-e x1 lane (only PCI-e 1.1 and Gen2 are supported)

  • Audio

    AC'97 Audio Interface
    I2S

  • Serial Ports

    2 x serial ports (TTL interface)
    CAN port interface

  • Other Interfaces

    I2C Bus
    LPC Bus
    SM Bus
    Power Management Signals

  • Power Supply

    +5VDC ± 5%

  • Operating System

    Linux
    Yocto
    Microsoft® Windows Embedded Compact 7

  • Operating Temperature

    0°C ÷ +70°C (commercial version)
    -40°C ÷ +85°C (industrial version)

    *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

  • Dimensions
    70x70 mm (2.76” x 2.76”)

Part Number

  • Q928-M1C0-BBB0-I1-V

    Part number description
    Q7-928 w/ i.MX6 Solo @800MHz - 512MB RAM - eMMC 4GB - microSD - Video Input Port - RTC low power - LPC interface - Ind. Temp.
    Contact us for more informations or quotes
    联系我们
  • Q928-N3C0-BBB0-C1-V

    Part number description
    Q7-928 w/ i.MX6 DualLite @1GHz - 1GB RAM - eMMC 4GB - microSD - Video Input Port - RTC low power - LPC interface - Com. Temp.
    Contact us for more informations or quotes
    联系我们
  • Q928-T3C0-BBB0-C1-V

    Part number description
    Q7 - Q7-928 w/ i.MX6 Dual @1GHz - 1GB RAM - eMMC 4GB - microSD - Video Input Port - RTC low power - LPC interface - Com. Temp.
    Contact us for more informations or quotes
    联系我们
  • Q928-V5C0-BBB0-I1-V

    Part number description
    Q7-928 w/ i.MX6 Quad @800MHz - 2GB RAM - eMMC 4GB - microSD - Video Input Port - RTC low power - LPC interface - Ind. Temp.
    Contact us for more informations or quotes
    联系我们
  • Q928-V6D0-BBB1-I1-V

    Part number description
    Q7-928 w/ i.MX6 Quad @800MHz - 4GB RAM - eMMC 8GB - microSD - Video Input Port - RTC low power - GPIO interface - Ind. Temp.
    Contact us for more informations or quotes
    联系我们

Related Products

CQ7-A42

Qseven® rel. 2.0 Compliant Carrier Board on 3.5” Form factor

Production

View Product
B901

The boxed solution B901 supports the CQ7-901 carrier board on Pico-ITX Form Factor and the following module: • Q7-928

Production

View Product
[Image] Q7 STARTER KIT 2.0
Q7 STARTER KIT 2.0

Cross Platform Starter Kit compatible with both x86 and Arm Rev. 2.0 Qseven® modules: a complete package including the basic components necessary to start developing

Production

View Product
[Picture] Q7 Dev Kit 2.0
Q7 DEV KIT 2.0

Cross Platform Development Kit for Qseven® philosophy, compatible with both x86 and Arm Rev. 2.0 Qseven® modules

Production

View Product
Q928-DISS-1-C-PK

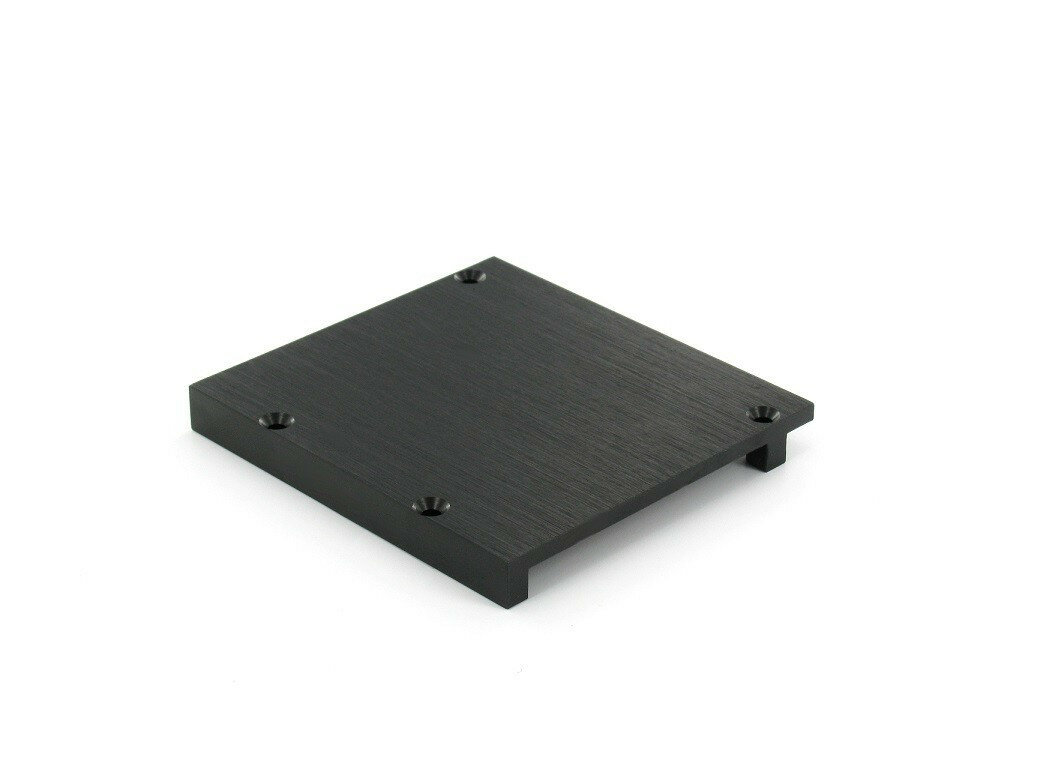

Q7 HEAT SPREADER: Q7-928 Heat Spreader (PASSIVE) for COMM. VERSION and Solo & DualLite INDUSTRIAL Packaged

Production

View Product
Q928-DISS-1-I-PK

Q7 HEAT SPREADER: Q7-928 Heat Spreader (PASSIVE) for Dual & Quad (AUTOMOTIVE & INDUSTRIAL) Packaged

Production

View Product
Q928-DISS-2-C-PK

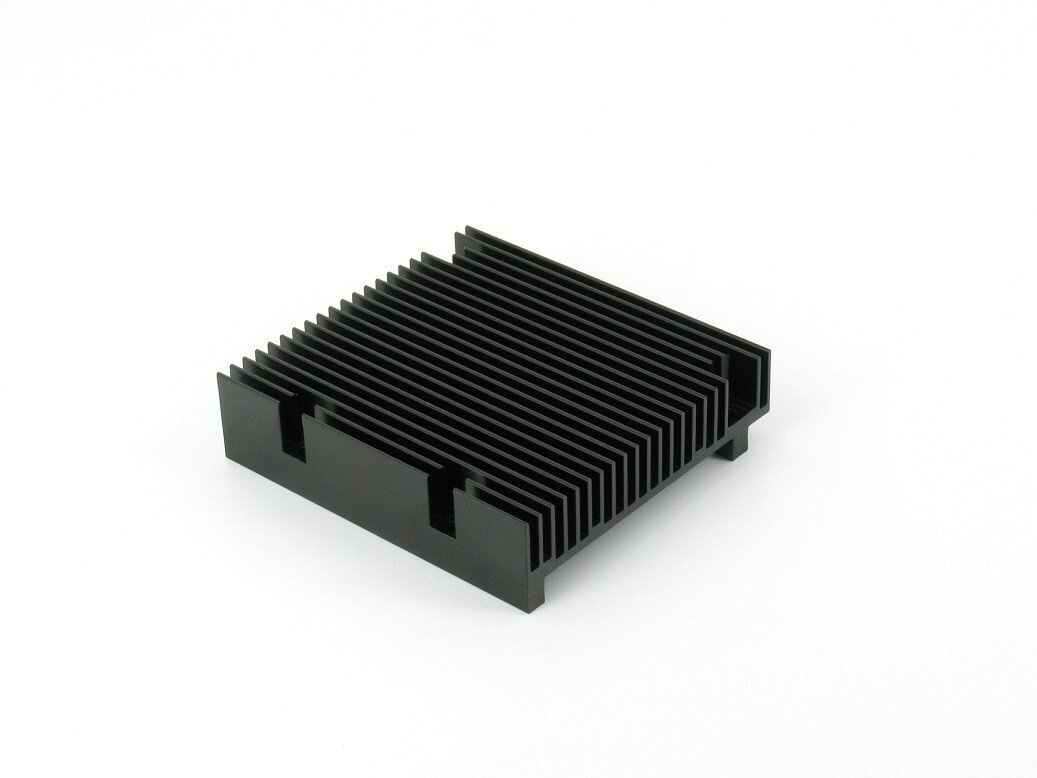

Q7 HEAT SINK: Q7-928 Heat Sink (PASSIVE) for COMM. VERSION and Solo & DualLite INDUSTRIAL Packaged

Production

View Product
Q928-DISS-2-I-PK

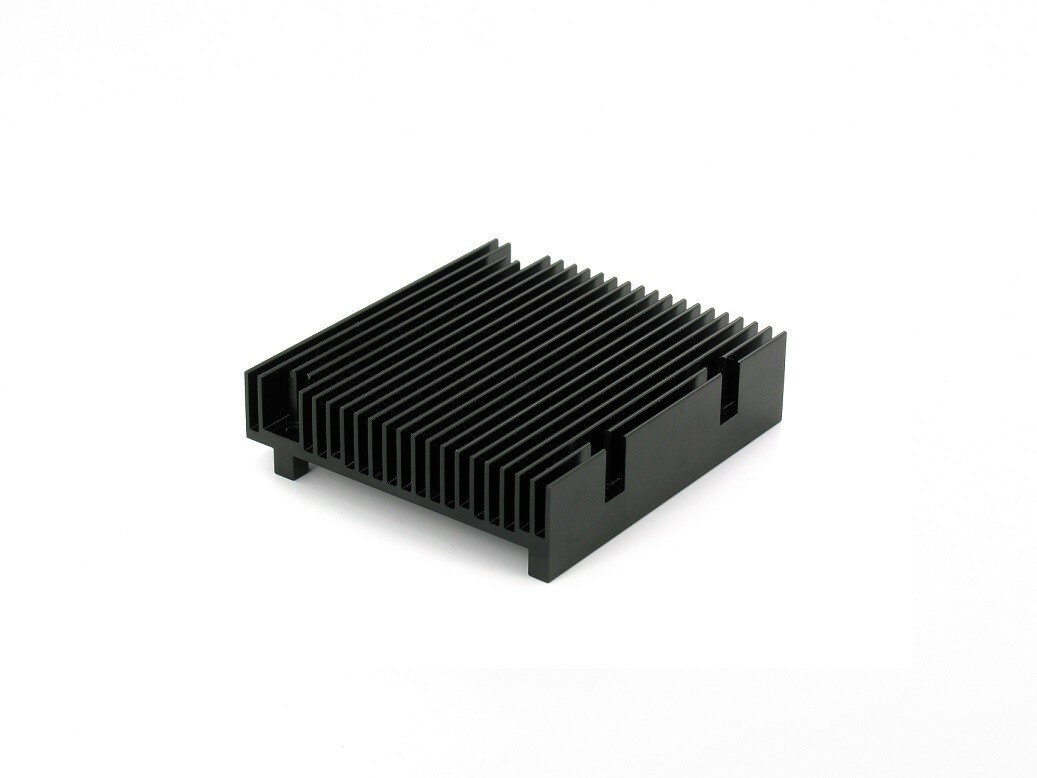

Q7 HEAT SINK: Q7-928 Heat Sink (PASSIVE) for Dual & Quad (AUTOMOTIVE & INDUSTRIAL) Packaged
