SOM-Q7-APL

搭载英特尔®凌动 X 系列、英特尔®赛扬® J/N 系列和英特尔®奔腾® N 系列(原名 Apollo Lake)处理器 的Qseven®Rel. 2.1 模块

Product status

Development
Sampling
Production
Available in Industrial Temperature Range

Contact us for more information and quotes

CPU

Intel® Atom X Series, Intel® Celeron® J / N Series and Intel® Pentium® N Series

Graphics

Integrated Gen9-LP Graphics controller

Connectivity

2x USB 3.0; 4x PCI-e; 6x USB 2.0

Memory

up to 8GB Dual-Channel DDR3L-1866

Product details

Technical Info

  • Description
    SOM-Q7-APL is a Qseven® Rel. 2.1 compliant module based on the Intel® Atom X Series, Intel® Celeron® J / N Series and Intel® Pentium® N Series (formerly code name Apollo Lake) Processors. This solution is able to merge its high graphics performance (4K HW Video both decoding and encoding) and extreme temperature with excellent power efficiency. Also featuring wide connectivity capability and support for the most popular operating systems, NAOS (formerly codenamed Q7-B03) is particularly suitable for low power embedded applications.
  • Processor

    Intel® Atom™ x5-E3930 Dual Core @1.3 GHz (Burst 1.8GHz), 2MB L2 Cache, 6.5W TDP
    Intel® Atom™ x5-E3940 Quad Core @1.6 GHz (Burst 1.8GHz), 2MB L2 Cache, 9.5W TDP
    Intel® Atom™ x7-E3950 Quad Core @1.6 GHz (Burst 2.0GHz), 2MB L2 Cache, 12W TDP
    Intel® Pentium® N4200 Quad Core @1.1GHz (Burst 2.5GHz), 2MB L2 Cache, 6W TDP
    Intel® Celeron® N3350 Dual Core @1.1GHz (Burst 2.4GHz), 2MB L2 Cache, 6W TDP
    Intel® Celeron® J3455, Quad Core @1.5GHz (Burst 2.3GHz), 2MB L2Cache, 10W TDP
    Intel® Celeron® J3355, Dual Core @2.0GHz (Burst 2.5GHz), 2MB L2Cache, 10W TDP

  • Max Cores
    4
  • Max Threads
    4
  • Memory

    Dual Channel Soldered Down DDR3L-1866 memory, up to 8GB

  • Graphics

    Integrated Intel® HD Graphics 500 series controller with up to 18 Execution Units
    Three Independent displays supported
    HW decoding of HEVC(H.265), H.264, MVC, VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG formats
    HW encoding of HEVC(H.265), H.264, MVC, VP8, VP9 and JPEG/MPEG formats

  • Video Interfaces

    eDP interface or Single/Dual Channel 18/24bit LVDS interface
    HDMI or DP++ interface

  • Video Resolution

    DP Up to 4096 x 2160 @60HZ

    eDP Up to 3840 x 2160 @60Hz

    HDM U p to 3840 x 2160 @30Hz

    LVDS, VGA Up to 1920 x 1200 @ 60Hz

  • Mass Storage

    Optional eMMC 5.0 drive soldered on-board
    2 x external S-ATA Gen3 Channels
    SD interface

  • Networking

    Gigabit Ethernet interface
    Intel® I210 or I211 Controller (MAC + PHY)

  • USB

    6 x USB 2.0 Host Ports
    2 x USB 3.0 Host Ports (*)

    (*) Second USB 3.0 Host port can be exploited only using
    Qseven® Rel. 2.1 compliant Carrier boards

  • PCI-e

    4 x PCI-e Root Ports (including the PCI-e port used for Gigabit Ethernet controller)

  • Audio

    HD Audio interface

  • Serial Ports

    1 x UART, TTL interface

  • Other Interfaces

    I2C Bus
    LPC Bus
    SM Bus
    SPI interface
    Watch Dog Timer
    Thermal / FAN management
    Power Management Signals

  • Power Supply

    +5VDC and +5VSB (optional)

  • Operating System

    Microsoft® Windows 10 Enterprise (64bit)
    Microsoft® Windows 10 IoT Core
    Linux
    Yocto (64 bit)

  • Operating Temperature

    0°C ÷ +60°C (Commercial version)
    -40°C ÷ +85°C (Industrial version)

    *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

  • Dimensions
    70x70 mm (2.76” x 2.76”)

Part Number

  • QB03-7560-2110-I2-V

    Part number description
    Q7-B03 - Intel Atom E3950 (2M Cache, up to 2.00 GHz) / TDP 12 W, DDR3L 8GB @800Mhz (8 chip x 8Gb), eMMC 32GB, LVDS,HDMI, Ethernet Contr. I210 Industrial - PCB lSOLA PCL370HR
    Contact us for more informations or quotes
    联系我们
  • QB03-8100-2110-I2-V

    Part number description
    Q7-B03 - Intel Atom E3940 (2M Cache, up to 1.80 GHz) / TDP 9.5 W , DDR3L 2GB 933Mhz (4 chip x 4Gb), NO eMMC, LVDS,HDMI, Ethernet Contr. I210 - Industrial - PCB lSOLA PCL370HR
    Contact us for more informations or quotes
    联系我们
  • QB03-8100-2210-C2-V

    Part number description
    Q7-B03 - Intel Atom E3940 (2M Cache, up to 1.80 GHz) / TDP 9.5 W , DDR3L 2GB (4 chip da 4Gb),no eMMC,LVDS,MULTI MODE DISPLAYPORT (DP++), Ethernet Contr. I210 - Commercial - PCB lSOLA PCL370HR
    Contact us for more informations or quotes
    联系我们
  • QB03-8230-2210-I2-V

    Part number description
    Q7-B03 - Intel Atom E3940 (2M Cache, up to 1.80 GHz) / TDP 9.5 W , DDR3L 4GB (8 chip x 4Gb), eMMC 16GB, LVDS,DISPLAYPORT, Ethernet Contr. I210 - Industrial - PCB lSOLA PCL370HR
    Contact us for more informations or quotes
    联系我们
  • QB03-8260-2110-I2-V

    Part number description
    Q7-B03 - Intel Atom E3940 (2M Cache, up to 1.80 GHz) / TDP 9.5 W , DDR3L 4GB (8 chip x 4Gb), eMMC 32GB, LVDS,HDMI, Ethernet Contr. I210 - Industrial - PCB lSOLA PCL370HR
    Contact us for more informations or quotes
    联系我们
  • QB03-9120-1110-I2-V

    Part number description
    Q7-B03 - Intel Atom E3930 (2M Cache, up to 1.80 GHz) / TDP 6.5 W , DDR3L 2GB 933Mhz (4 chip x 4Gb), eMMC 8GB, eDP, HDMI, Ethernet Contr. I210 - Industrial - PCB lSOLA PCL370HR
    Contact us for more informations or quotes
    联系我们
  • QB03-B400-1110-C2-V

    Part number description
    Q7-B03 - Intel Pentium N4200 (2M Cache, up to 2.50 GHz) / TDP 6 W, DDR3L 8GB (8 chip x 8Gb), eDP, HDMI, Ethernet Contr. I210 - Commercial - PCB lSOLA PCL370HR
    Contact us for more informations or quotes
    联系我们

Related Products

CQ7-A42

Qseven® rel. 2.0 Compliant Carrier Board on 3.5” Form factor

Production

View Product
[Picture] CQ7-D59_front
CQ7-D59

Carrier Board for Qseven® Rel. 2.0 / 2.1 Compliant Modules in the 3.5” Form Factor

Production

View Product
[Image] Q7 STARTER KIT 2.0
Q7 STARTER KIT 2.0

Cross Platform Starter Kit compatible with both x86 and Arm Rev. 2.0 Qseven® modules: a complete package including the basic components necessary to start developing

Production

View Product
[Picture] Q7 STARTER KIT 2.1
Q7 STARTER KIT 2.1

Cross Platform Starter Kit compatible with both x86 and Arm Rel. 2.0 / 2.1 Qseven® modules

Production

View Product
[Picture] Q7 Dev Kit 2.0
Q7 DEV KIT 2.0

Cross Platform Development Kit for Qseven® philosophy, compatible with both x86 and Arm Rev. 2.0 Qseven® modules

Production

View Product

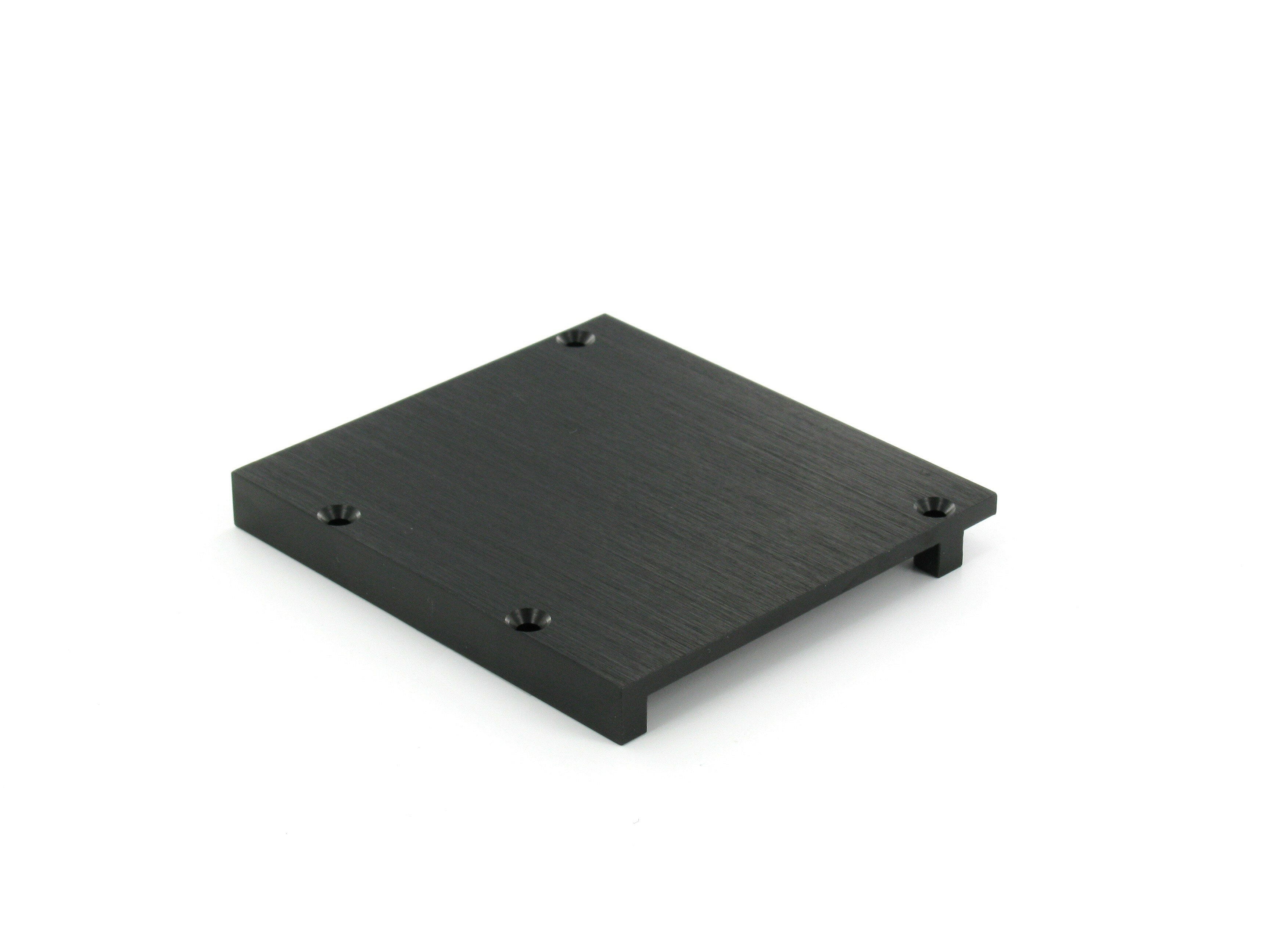

QB03-DISS-1-C-PK
