SOM-COMe-CT6-APL

搭载英特尔®凌动™ X、英特尔® 赛扬® J / N、英特尔® 奔腾® N 系列(原名 Apollo Lake)处理器的 COM Express® 3.0 紧凑型 6 型模块

Product status

Development
Sampling
Production
Available in Industrial Temperature Range

Contact us for more information and quotes

CPU

Intel® Atom™ X Series, Intel® Celeron® J / N Series and Intel® Pentium® N Series (formerly Apollo Lake) Processors

Graphics

Intel® HD Graphics 500 series controller with up to 18 Execution Units

Connectivity

4x USB 3.0; 8x USB 2.0; 5x PCI-e x1 Gen2

Memory

Two DDR3L SO-DIMM Slots supporting DDR3L-1866 non-ECC Memory

Product details

Technical Info

  • Description
    The SOM-COMe-CT6-APL is a real powerhouse, with up to 8GB DDR3L memory on two SO-DIMM slots. Also available in the industrial temperature range, it delivers outstanding graphics performance through up to three independent displays at the same time in 4K resolution. Its HW decoding/encoding capabilities support several video compression standards, including HEVC (H. 265), H.264, MVC, VP8, VP9 and JPEG/MPEG formats. All in all, the computer-on-module is a particularly great combination of high-end graphics and low power design and, thereby, is the ideal match for low-power industrial applications.
  • Processor

    Intel® Atom™ x5-E3930 Dual Core @1.3 GHz (Burst 1.8GHz), 2MB L2 Cache, 6.5W TDP
    Intel® Atom™ x5-E3940 Quad Core @1.6 GHz (Burst 1.8GHz), 2MB L2 Cache, 9.5W TDP
    Intel® Atom™ x7-E3950 Quad Core @1.6 GHz (Burst 2.0GHz), 2MB L2 Cache, 12W TDP
    Intel® Pentium® N4200 Quad Core @1.1GHz (Burst 2.5GHz), 2MB L2 Cache, 6W TDP
    Intel® Celeron® N3350 Dual Core @1.1GHz (Burst 2.4GHz), 2MB L2 Cache, 6W TDP
    Intel® Celeron® J3455, Quad Core @1.5GHz (Burst 2.3GHz), 2MB L2Cache, 10W TDP
    Intel® Celeron® J3355, Dual Core @2.0GHz (Burst 2.5GHz), 2MB L2Cache, 10W TDP

  • Max Cores
    4
  • Max Threads
    4
  • Memory

    Two DDR3L SO-DIMM Slots supporting DDR3L-1866 non-ECC Memory, up to 8GB

  • Graphics

    Integrated Intel® HD Graphics 500 series controller with up to 18 Execution Units
    Three Independent displays supported
    HW decoding of HEVC(H.265), H.264, MVC, VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG formats
    HW encoding of HEVC(H.265), H.264, MVC, VP8, VP9 and JPEG/MPEG formats

  • Video Interfaces

    Up to 2 x Digital Display Interfaces (DDIs), supporting DP 1.2, DVI and HDMI 1.4b
    eDP 1.3 or Single/Dual-Channel 18-/24- bit LVDS interface
    optional VGA interface

  • Video Resolution

    DP: Up to 4096 x 2160 @60HZ
    eDP: Up to 3840 x 2160 @60Hz
    HDMI: Up to 3840 x 2160 @30Hz
    LVDS, VGA: Up to 1920 x 1200 @ 60Hz

  • Mass Storage

    Optional eMMC 5.0 drive soldered on-board
    2 x external S-ATA Gen3 Channels
    microSD Card Slot onboard

  • Networking

    Optional Gigabit Ethernet interface
    Intel® I210 or I211 GbE Controller (MAC + PHY)

  • USB

    Up to 4 x USB 3.0 Host ports
    8 x USB 2.0 Host port

  • PCI-e

    Up to 5 x PCI-e x 1 Gen2 lanes

  • Audio

    HD Audio Interface

  • Serial Ports

    2 x UARTs

  • Other Interfaces

    SPI, I2C, SM Bus, Thermal Management, FAN management
    LPC bus
    Optional TPM 2.0 on-board
    LID#/SLEEP#/PWRBTN#, Watchdog
    4x GPI, 4 x GPO

  • Power Supply

    +12VDC ± 10% and + 5VSB (optional)

  • Operating System

    Microsoft® Windows 10 Enterprise (64-bit)
    Microsoft® Windows 10 IoT core
    Wind River Linux (64 bit)
    Yocto (64 bit)
    Android (planning)

  • Operating Temperature

    0°C  ÷ +60 °C (Commercial version)
    -40°C ÷ +85°C (Industrial version)



    *Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.

  • Dimensions
    95 x 95 mm (Com Express™ Compact Form factor, Type 6 pinout)

Part Number

  • MC24-6100-2212-C2

    Part number description
    COMe-C24-CT6 w/Intel® Atom™ x5-E3930 Dual Core @1.3 GHz (Burst 1.8GHz), 6.5W TDP, 4w fan, 1xLVDS, 1x DDI & VGA, 5x PCIe x1, 2x USB 3.0, 1xGbE I210, 2x UARTs - Comm. Temp
    Contact us for more informations or quotes
    联系我们

Related Products

DEV-KIT-COMe-T6

Cross Platform Development Kit compatible with both x86 and Arm COM Express® Type 6 modules

Development

View Product
Carrier-COMe-T6-C30

Carrier Board for COM Express™ Type 6 Modules on 3.5” form factor

Sampling

View Product
MC24-DISS-1-C-PK

COMe-C24-CT6 Heat Spreader (PASSIVE) for COMMERCIAL VERSION

Production

View Product

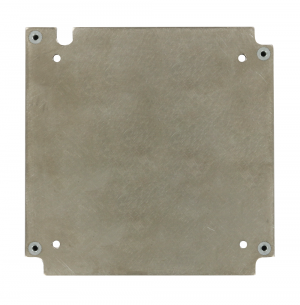

MC24-DISS-1-I-PK
