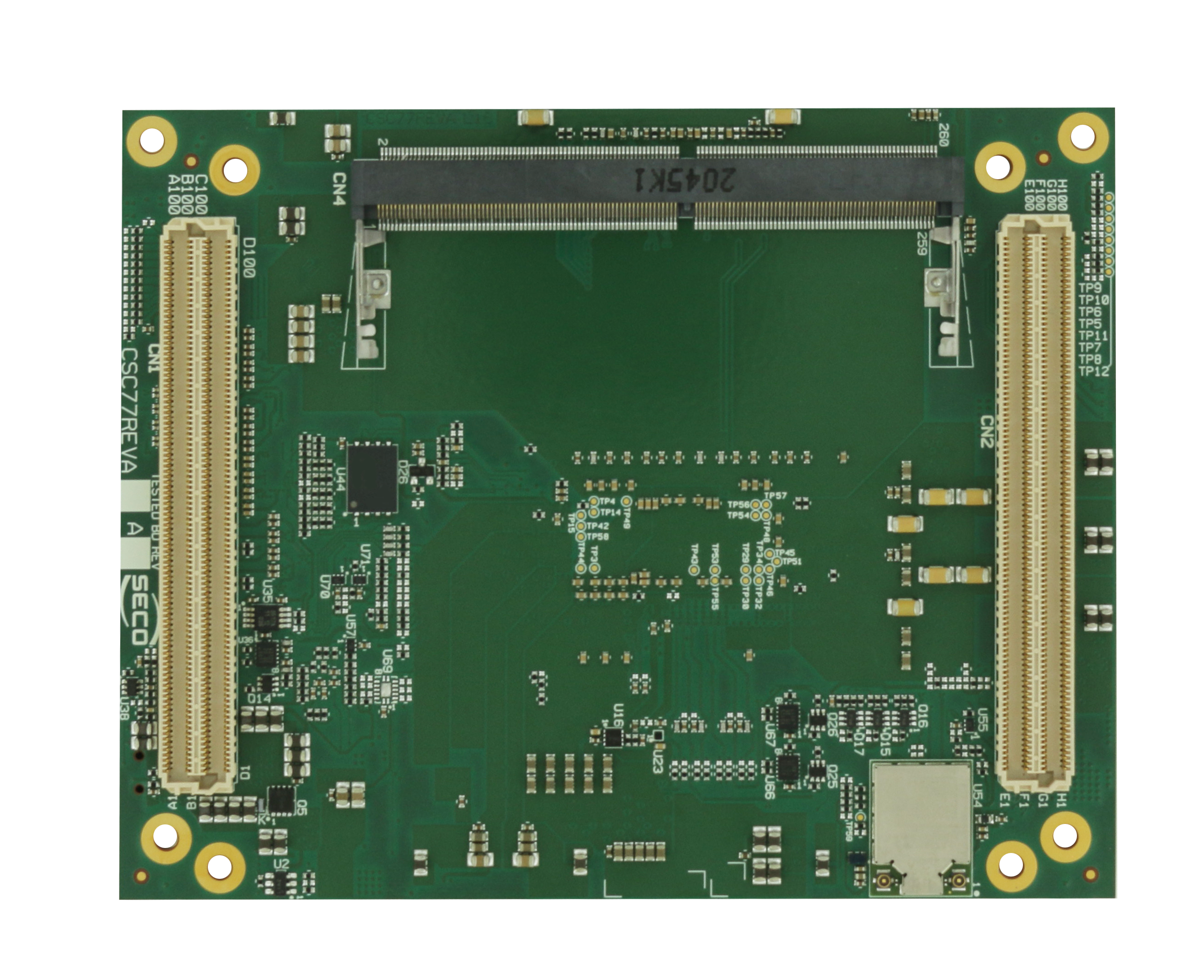

SOM-COM-HPC-A-TGL-UP3

11th Generation Intel® Core™ and Celeron® Processors, also available in industrial temperature range
• Intel® Core™ i7-1185G7E, Quad Core @ 2.8GHz (4.4GHz in Turbo Boost) with HT, 12MB Cache, 28/15/12W cTDP
• Intel® Core™ i5-1145G7E, Quad Core @ 2.6GHz (4.1GHz in Turbo Boost) with HT, 8MB Cache, 28/15/12W cTDP
• Intel® Core™ i3-1115G4E, Dual Core @ 3.0GHz (3.9GHz in Turbo Boost) with HT, 6MB Cache, 28/15/12W cTDP
• Intel® Celeron® 6305E, Dual Core @1.8GHz, 4MB Cache, 15W TDP
• Intel® Core™ i7-1185GRE, Quad Core @ 2.8GHz (4.4GHz in Turbo Boost) with HT, 12MB Cache, with IBECC and Functional Safety Essential Design package, 28/15/12W cTDP – Industrial (w/ Turbo OFF)
• Intel® Core™ i5-1145GRE, Quad Core @ 2.6GHz (4.1GHz in Turbo Boost) with HT, 8MB Cache, with IBECC and Functional Safety Essential Design package, 28/15/12W cTDP - Industrial (w/ Turbo OFF)
•Intel® Core i3-1115GRE, Dual Core @ 3.0GHz (3.9GHz in Turbo Boost) with HT, 6MB Cache, 28/15/12W cTDP - Industrial (w/ Turbo OFF)

2x DDR4-3200 SODIMM Slots with IBECC (In-Band Error Correction Code), up to 64GB supported

Integrated Iris Xe Graphics Core Gen12 architecture, with up to 96 Execution Units
MPEG2, WMV9, AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60.
AVC/H.264, HEVC/H.265, JPEG, VP9 HW encoding
Support up to 4 independent displays.

1x eDP 1.4b or MIPI_DSI 1.3
Up to 3x DP++ interface, supporting Display Port 1.4a and HDMI 2.0b
Up to 4x Display Port over Type-C (Alternate mode)

DP, eDP: Up to 5120x3200 @60Hz 24bpp / 7680x4320@60Hz 30bpp with DSC
MIPI-DSI: Up to 3200x2000 @60Hz 24 bpp, 5120x3200 @60Hz 24bpp with DSC
HDMI 1.4: Up to 4Kx2K 24-30Hz 24bpp
HDMI 2.0b: Up to 4Kx2K 48-60Hz 24bpp / 4Kx2K 48-60Hz 12bpc (need dedicated redriver on carrier board)

2 x S-ATA Gen3 Channels
PCI-e x4 port can be used to connect, on the carrier board,
M.2 NVMe drives

Up to 2x NBase-T Ethernet interfaces, supporting 2.5Gb Ethernet connection, managed by as many Intel® i225 2.5GbE Controllers
M.2 1216 SD Module supporting WiFi 802.11abgn+ac R2
MIMO 2x2 + MU-MIMO and Bluetooth 5.0

Up to 4 x USB 4.0 / USB 3.2 Host ports
4 x USB 2.0 Host port

1x PCI-e x4 Gen 4 port
Up to 8x PCI-e Gen 3 lanes, groupable to support up to 4 root ports (5 root ports without the second 2.5GbE controller)

SoundWire and I2S Audio Interface

2 x UARTs

2x 4-lane CSI-2 interfaces, optional
SPI, SM Bus, 2x I2C, Watchdog timer, Carrier board FAN Control
Management signals, ACPI signals, Safety Status signals
Deep Sleep / Battery support
Optional TPM 2.0 module on-board
12x GPIOs

+8VDC .. +20VDC Main power supply
+5V stand-by

Windows 10 IoT Enterprise LTSC
Linux Kernel LTS
Yocto
VxWorks 7.0
Android

0°C ÷ +60°C (Commercial version)
-40°C ÷ +85°C (Industrial version)

*Measured at any point of SECO standard heatspreader for this product, during
any and all times (including start-up). Actual temperature will widely depend on
application, enclosure and/or environment. Upon customer to consider applicationspecific
cooling solutions for the final system to keep the heatspreader temperature
in the range indicated.
