SBC-MX6

NXP i.MX 6 Family, based on ARM Cortex-A9 processors:
SBC-A62-J-SOLO: Single Core (i.MX6S) @1GHz
SBC-A62-J-LITE: Dual Core Lite (i.MX6DL) @1GHz
SBC-A62-J-PLUS: Dual Core Plus (i.MX6DP) @1GHz
SBC-A62-J-QUAD: Quad Core (i.MX6Q) @1GHz

Soldered on-board DDR3L memory***:
SBC-A62-J-SOLO: 512MB 32-bit interface
SBC-A62-J-LITE: 1GB 64-bit interface
SBC-A62-J-PLUS: 2GB 64-bit interface
SBC-A62-J-QUAD: 1GB 64-bit interface

*** For additional configurability please contact SECO

Integrated Graphics, with up to 3 separate HW accelerators for 2D, OpenGL® ES2.0 3D
OpenVG™ accelerator (only SBC-A62-J-PLUS and SBC-A62-J-QUAD)
HW encoding of MPEG-4, H.263 V2, H.264, MJPEG
HW decoding of MPEG-2, VC1, MPEG-4 / XviD, H.263, H.264, DivX
SBC-A62-J-SOLO and SBC-A62-J-LITE support up to 2 independent displays
SBC-A62-J-PLUS and SBC-A62-J-QUAD support up to 3independent displays

1 x Dual Channel or 2 x Single Channel 18 / 24 bit LVDS interface
HDMI interface 1.4

HDMI: up to 1920 x 1080p
LVDS: up to 1920 x 1200

4GB eMMC drive soldered onboard***
microSD Card slot
SBC-A62-J-PLUS and SBC-A62-J-QUAD: SATA connector

*** For additional configurability please contact SECO

Gigabit Ethernet connector

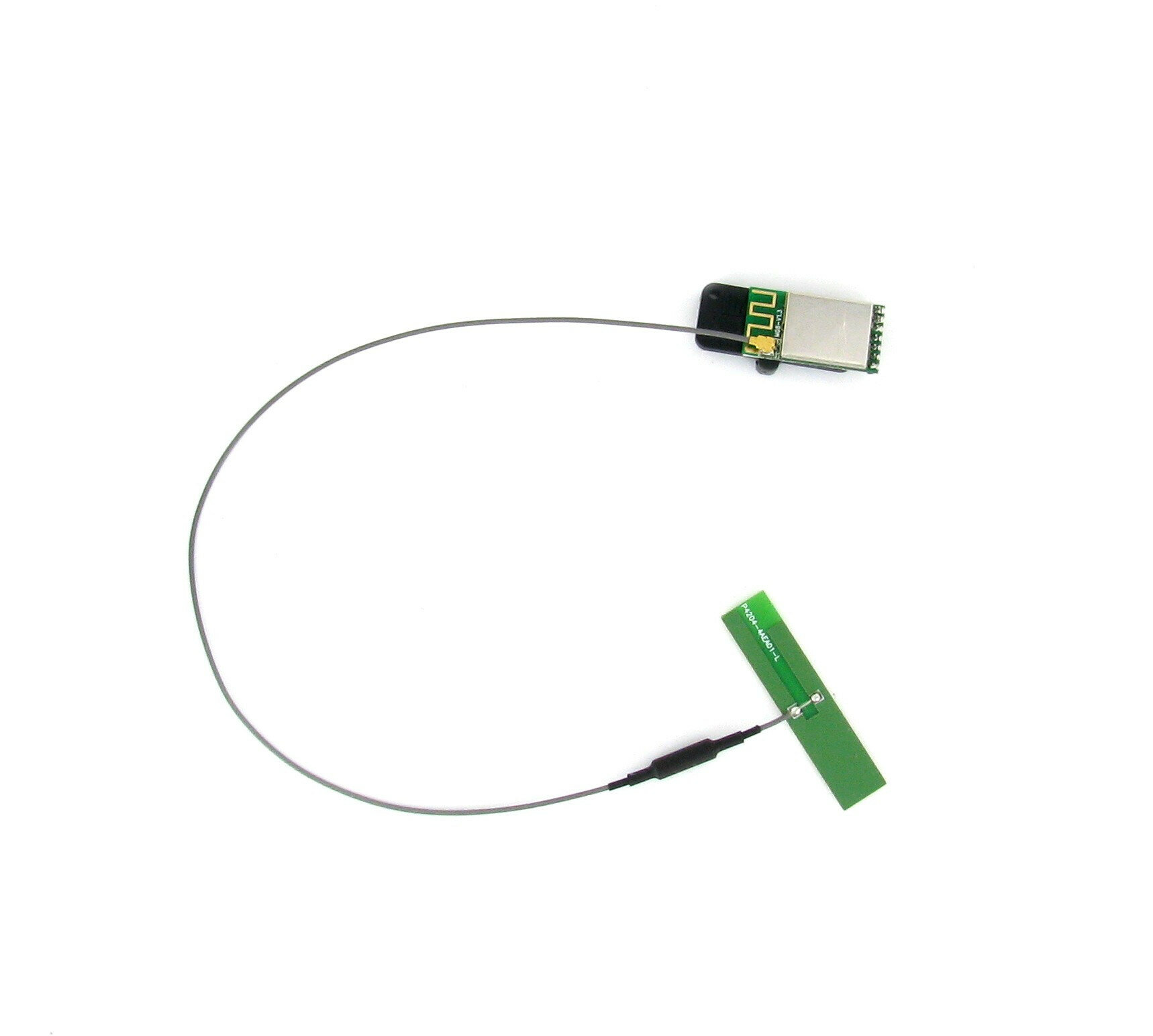

Internal USB connector for Wi-Fi Module

2 x USB 2.0 Type-A ports and 1 x USB 2.0 internal connector
USB micro-B Client port

SBC-A62-J-LITE, SBC-A62-J-PLUS and SBC-A62-J-QUAD:
AC’97 Audio Codec Realtek ALC655 with Mic-In, Line-Out audio Jacks

Debug UART interface, TTL voltage level.
SBC-A62-J-LITE, SBC-A62-J-PLUS and SBC-A62-J-QUAD: dedicated CAN Bus connector (Transceiver CAN 3.3V)
Other serial interfaces on the expansion connector:
SBC-A62-J-SOLO: 1 x Serial (TTL level) - 2 x Serial (RS-232) -2 x CAN (TTL level);
SBC-A62-J-LITE: 1 x Serial (TTL level) - 2 x Serial (RS-232) - 1 x CAN (TTL level);
SBC-A62-J-PLUS and SBC-A62-J-QUAD: 1 x Serial (RS-485) - 2 x Serial (RS-232) - 1 x CAN (TTL level)

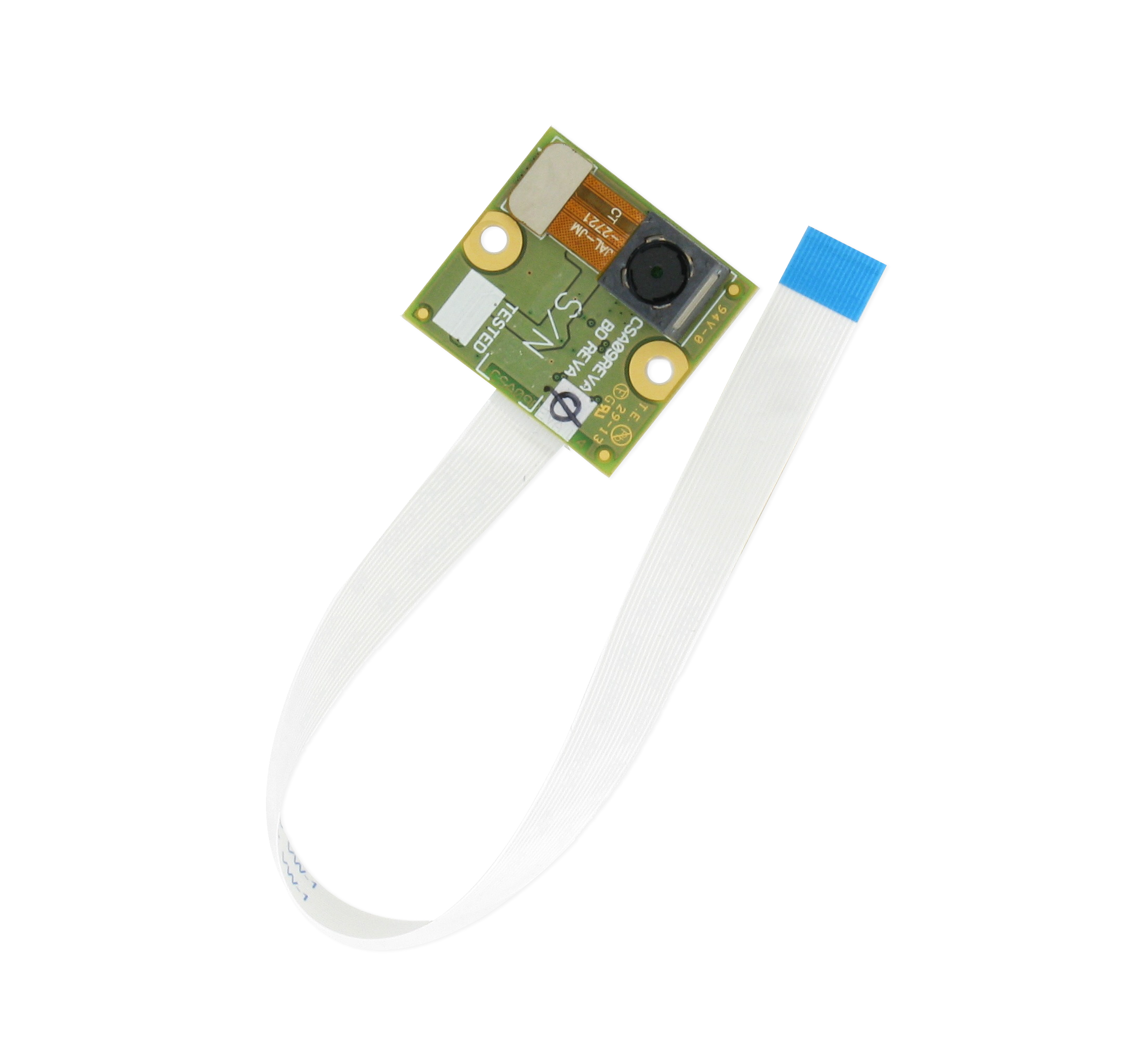

Dedicated connector (I2C, GPIO signals) for external Touch Screen controller; MIPI-CSI Camera connector;
Configurable* expansion connector with: Up to 28 GPIO - SPI interface - SPDIF Audio interface - CAN interface (TTL level) - SDIO interface - 3 x PWM - I2C - UARTs

* Please note that some of these interfaces are factory options, other configurations are made via SW.

+12VDC; Additional embedded Low Power RTC;

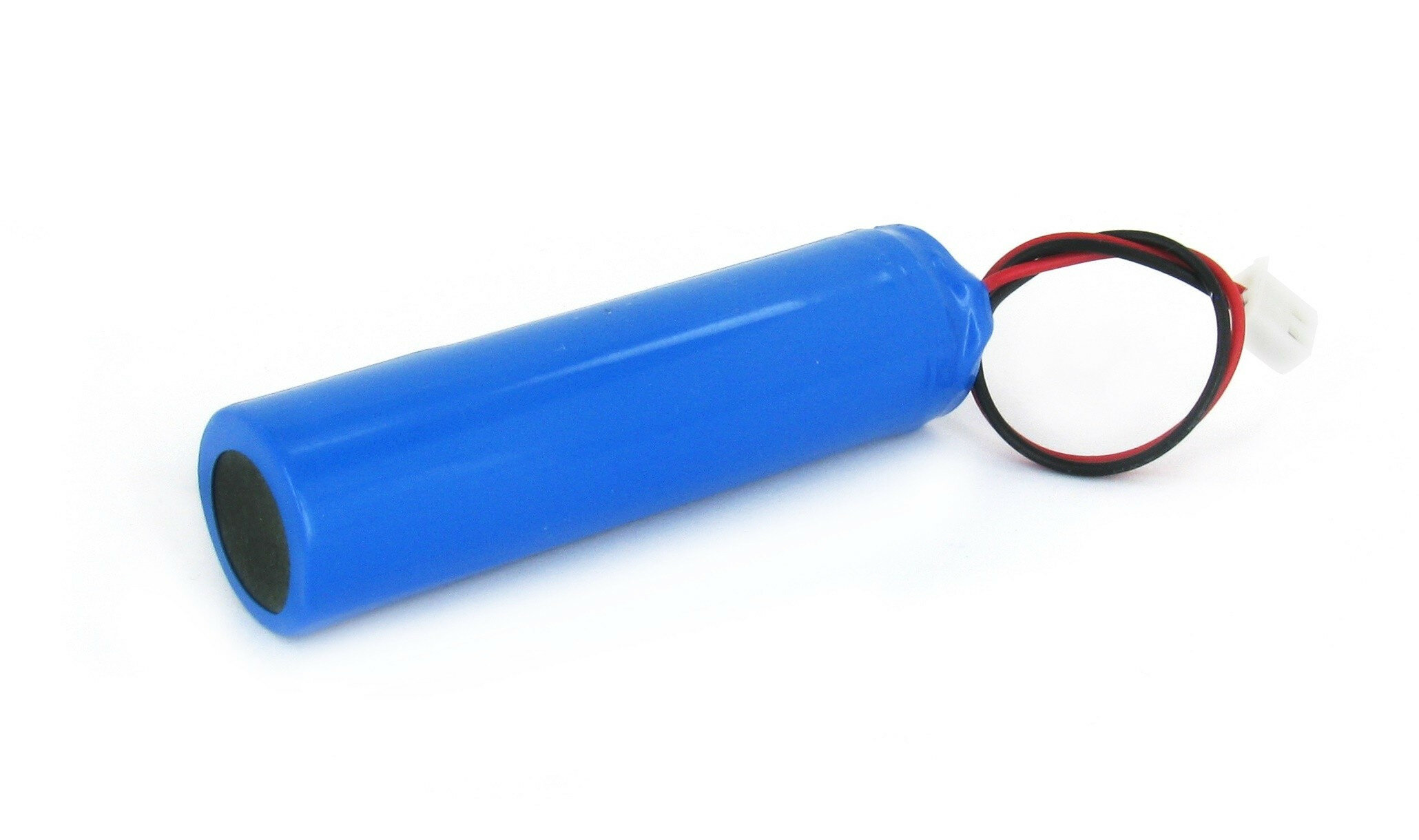

SBC-A62-J-SOLO and SBC-A62-J-LITE: internal i.MX6 Real Time Clock (external battery required for time/date retention, not included)
SBC-A62-J-PLUS and SBC-A62-J-QUAD: low power Real TimeClock with onboard battery

Free Android and Linux community BSP available at UDOO.org
SECO Android (under development) and Linux BSP / WEC7 on request. Please contact us
Yocto Guideline valid for SECO BSP
Linux

0°C  ÷ +60 °C (commercial temp.)**
For industrial temp. (-40°C ÷ +85°C)** please contact us

*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
