SBC-eNUC-BSW
搭载 N 系列英特尔®奔腾®/赛扬®和 x5 系列凌动™ SoC 的嵌入式 NUC™ 单板计算机
Product status
Contact us for more information and quotes
CPU
N-series Intel® Pentium® and Celeron® SOCs
Graphics
Integrated Graphics, three independent display support
Connectivity
2x GbE; CIR sensor; 8x GPI/Os
Memory
2 x DDR3L SO-DIMM Slots with Dual Channel Support, up to 8GB DDR3L-1600
Product details
Technical Info
-
Description
NOLAN is SECO’s Single Board Computer based on the Intel® Pentium® and Celeron® N3000 series, in the embedded NUC™ (eNUC) form factor from the SGeT consortium. This embedded NUC™ Type 2 “Connectivity” module (101.6 x 101.6 mm) is a multifunctional and long lifetime solution that features Industrial range power supply, HDMI, miniDP and eDP video connectors, M.2 SSD and M.2 PCI-e slots, along with Dual Gigabit Ethernet and USB 3.0 Connectivity. A smart, innovative, cost-effective and aimed at next generation Single Board Computer. -
Processor
Intel® Pentium® N3710, Quad Core @ 1.6GHz (Turbo Boost 2.56GHz), 2MB Cache, 6W TDP
Intel® Celeron® N3160, Quad Core @ 1.6GHz (Turbo Boost 2.24GHz), 2MB Cache, 6W TDP
Intel® Celeron® N3060, Dual Core @ 1.6GHz (Turbo Boost 2.48GHz), 2MB Cache, 6W TDP
Intel® Celeron® N3010, Dual Core @ 1.04GHz (Turbo Boost 2.24GHz), 2MB Cache, 4W TDP
Intel® Atom™ x5-E8000, Quad Core @ 1.04GHz (Turbo Boost 2.00GHz), 2MB Cache, 5W TDP -
Max Cores
4
-
Max Threads
4
-
Memory
2 x DDR3L SO-DIMM Slots with Dual Channel Support,
up to 8GB DDR3L-1600 -
Graphics
Integrated Graphics
Three independent display support
HW decoding of HEVC(H.265), H.264, MPEG2, MVC, VC-1, VP8, WMV9, JPEG/MJPEG formats
HW encoding of H.264, MVC and JPEG/MPEG formats -
Video Interfaces
HDMI connector
miniDP++ connector
embedded Display Port (eDP) internal connector -
Video Resolution
HDMI, DP: up to 3840x2160 24bpp @ 30Hz, 2560x1600 24bpp @ 60Hz
eDP: up to 2560x1440 24bpp @ 60Hz -
Mass Storage
Optional eMMC drive on-board
M.2 SATA SSD slot (Socket 2 Key B Type 2242 or 2260)
microSD Card slot
SATA 7p M connector -
Networking
2 x Gigabit Ethernet ports
-
USB
2 x USB 3.0 Host ports on Type-A sockets
2 x USB 2.0 Host port on internal pin header
1 x USB 2.0 host port on M.2 Connectivity Slot -
PCI-e
1 x PCI-e x1 port on M.2 Connectivity Slot
-
Audio
Audio available on HDMI and miniDP++ interfaces
HD Audio codec
Combo TRRS connector with LineOut and MicIn support -
Serial Ports
2 x RS-232 / RS-422 / RS-485 UARTS, on internal Pin Header
-
Other Interfaces
I2C Touch Panel connector
Front Panel Pin Header
CIR (Consumer InfraRed) sensor
8 x GPI/Os -
Power Supply
+18VDC ÷ +32VDC recommended
+15VDC ÷ +36VDC absolute
RTC Battery -
Operating System
Microsoft® Windows 7 (32 / 64 bit)
Microsoft® Windows 8.1 (32 / 64 bit)
Microsoft® Windows 10 (32 / 64 bit)
Microsoft® Windows 10 IoT
Linux
Yocto -
Operating Temperature
0°C ÷ +60 °C (commercial version)

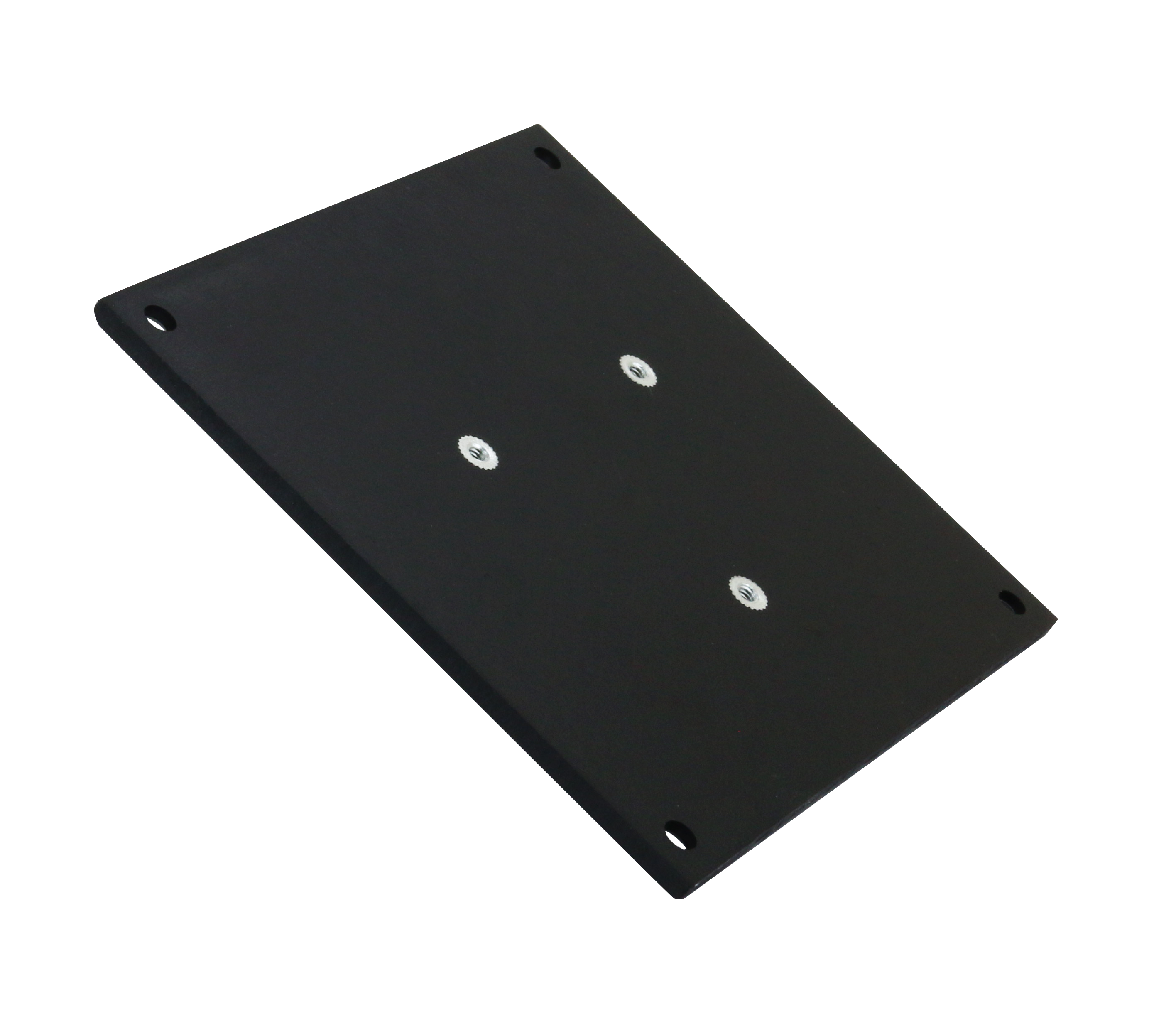

*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
-
Dimensions
101.6 x 101.6 mm (4” x 4”)
Software
-
BIOS
-
Tools and Documents
-
EAPI
-
Linux-YOCTO
-
Windows 8.1
-
Windows 7
-
Windows 10
Documentation
-
Data Sheet
-
Manual
-
Part Number
-
SA80-2000-0000-C0-V
Part number descriptionSBC - SBC-A80-eNUC - N3160Contact us for more informations or quotes
