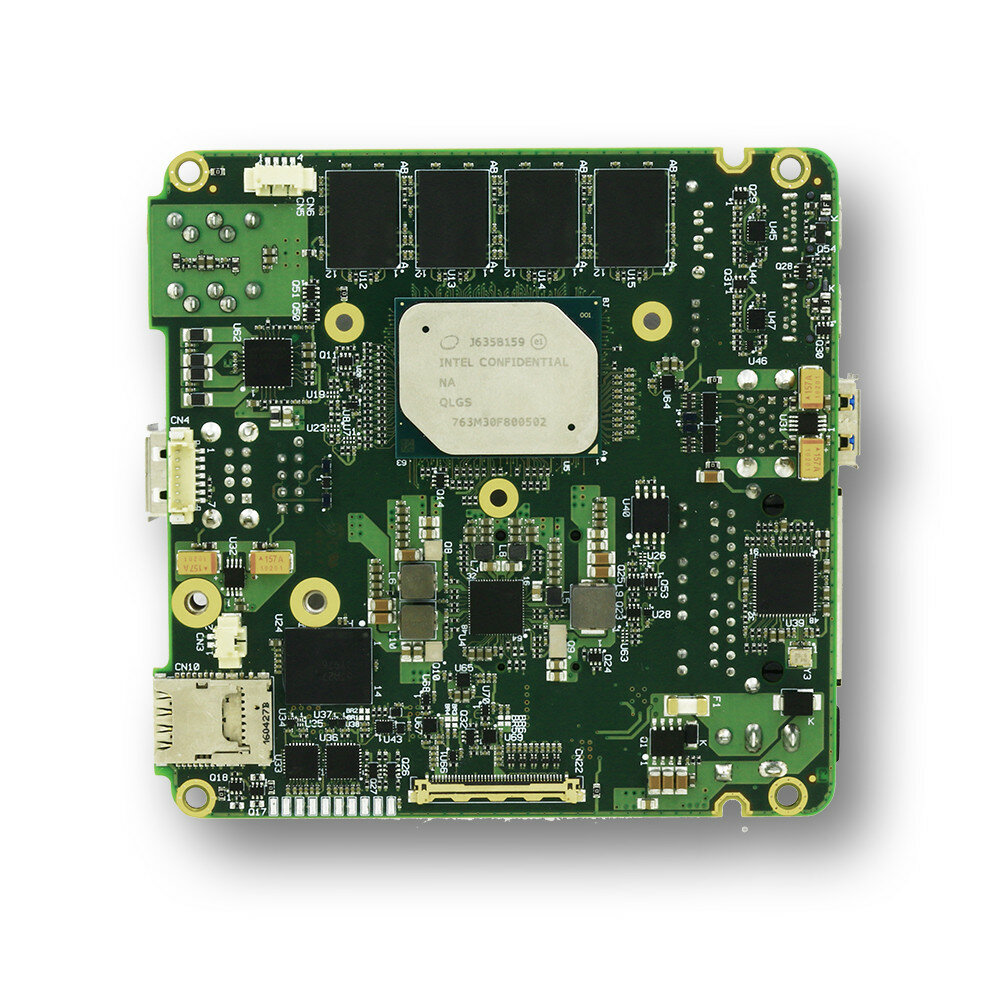

SBC-eNUC-APL

Intel® Atom™ x5-E3930 Dual Core @1.3 GHz (Burst 1.8GHz), 2MB L2 Cache, 6.5W TDP
Intel® Atom™ x5-E3940 Quad Core @1.6 GHz (Burst 1.8GHz), 2MB L2 Cache, 9.5W TDP
Intel® Atom™ x7-E3950 Quad Core @1.6 GHz (Burst 2.0GHz), 2MB L2 Cache, 12W TDP
Intel® Pentium® N4200 Quad Core @1.1GHz (Burst 2.5GHz), 2MB L2 Cache, 6W TDP
Intel® Celeron® N3350 Dual Core @1.1GHz (Burst 2.4GHz), 2MB L2 Cache, 6W TDP
Intel® Celeron® J3455, Quad Core @1.5GHz (Burst 2.3GHz), 2MB L2Cache, 10W TDP
Intel® Celeron® J3355, Dual Core @2.0GHz (Burst 2.5GHz), 2MB L2Cache, 10W TDP

Quad Channel soldered down LPDDR4 memory, up to 8GB

Integrated Intel® HD Graphics 500 series controller, with up to 18 Execution Units
4K HW decoding and encoding of HEVC(H.265), H.264, VP8, VP9, MVC
Three independent display support

Two DP++ 1.2 interfaces on miniDP connectors
(supports HDMI displays through external adapter)
embedded Display Port (eDP) internal connector
LVDS through optional external adapter

DP: Up to 4096 x 2160 @60HZ
eDP: Up to 3840 x 2160 @60Hz
HDMI: Up to 3840 x 2160 @30Hz
LVDS: Up to 1920 x 1200 @ 60Hz


Optional eMMC drive onboard
M.2 SATA SSD slot (Socket 2 Key B Type 3042/2260 **)
microSD Card slot
SATA 7p M connector

** SATA SSD and WWAN functionalities share the same slot and are therefore mutually exclusive.

2x Gbit LAN / Intel Gigabit Ethernet i21x family controller
M.2 WWAN Slot for Modems (Socket 2 Key B Type 3042/2260 **)
M.2 WLAN Connectivity Slot for WiFi/BT (Socket 1 Key E type 2230)

** SATA SSD and WWAN functionalities share the same slot and are therefore mutually exclusive.

2 x USB 3.0 Host ports on USB 3.0 Type-A sockets
2 x USB 2.0 Host ports on USB 2.0 Type-A sockets
2 x USB 2.0 Host ports on internal pin header
1 x USB 3.0 Host port on SSD/WWAN M.2 slot
1 x USB 2.0 Host port on WLAN M.2 Slot

1 x PCI-e x2 port on M.2 SSD/WWAN Slot
1 x PCI-e x1 port on WLAN M.2 Slot

HD Audio codec / Cirrus Logic CS4207
Mic In and Line Out Audio jacks
Amplified Speaker output on internal pin header

2 x RS-232/RS-422/RS-485 UARTS software configurable, oninternal Pin Header

2 x I2C + 8 x GPI/Os on Feature connector
Button / LED front panel header
CIR (Consumer InfraRed) sensor
microSIM slot for M.2 WWAN Modem
Optional TPM 2.0 on-board

+18VDC ÷ +32 VDC recommended
+15VDC ÷ +36VDC absolute
RTC Battery

Microsoft® Windows 10 Enterprise (64 bit)
Microsoft® Windows 10 IoT Core
Yocto (64 bit)
Linux

0°C  ÷ +60 °C (commercial version)
-40°C ÷ +85°C (Industrial version)

*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
