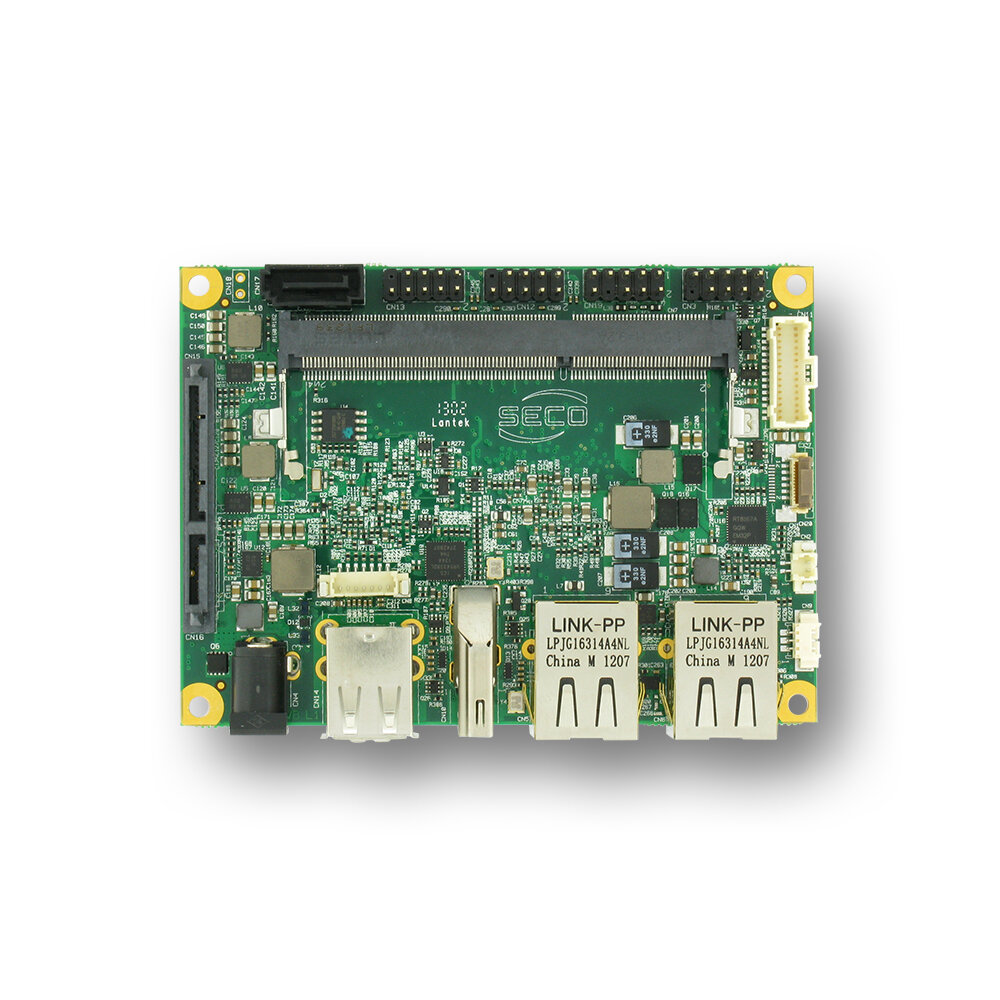

SBC-949-pITX

Single Board Computer with Intel® Atom™ Cedar View family Processors and Intel® NM10 Express Chipset on Pico-ITX form factor

Product status

Development
Sampling
Production

Contact us for more information and quotes

联系我们

CPU

Intel® Atom™ Cedar View family Dual Core Processors

Graphics

Integrated Intel® HD Graphics controller

Connectivity

Up to 2x GbE; 2x USB 2.0 Type-A ports; 4x internal USB 2.0 ports

Memory

up to 4GB DDR3 1066MHz SO-DIMM

Product details

Technical Info

  • Description
    SBC-949-pITX is a Single Board Computer in Pico-ITX form factor (just 100 x 72mm) based on the Intel® Atom™ family of CPUs, N2000 and D2000, a series of Dual Core CPU with Hyper Threading capabilities and 64-bit instruction set. Integrating a high performance 2D and 3D GPU, along with NM10 Express Chipset, which gives the support for most PC-like interfaces, this family of processors offer to the user a high level performance for all kind of applications, from graphical to industrial automation.
  • Processor

    Intel® Atom™ D2550 @ 1.86GHz, 1MB Cache, 10W TDP

    Intel® Atom™ N2800 @ 1.86GHz, 1MB Cache, 6.5W TDP

    Intel® Atom™ N2600 @ 1.6GHz, 1MB Cache, 3.5W TDP

  • Chipset

    Intel® NM10 Express Chipset

  • Memory

    up to 4GB DDR3 1066MHz SO-DIMM (up to 2GB with N2600)

  • Graphics

    Integrated Intel® HD Graphics controller

    Dual independent display support

    Supports DirectX 9 Shader Model 3.0 and OpenGL rel. 3.0

  • Video Interfaces

    HDMI Connector

    18/24 bit single channel LVDS internal connector

    VGA interface (optional external adapter is required)

  • Video Resolution

    HDMI, CRT Up to 1920x1200

    LVDS Interface Up to 1440x 900

  • Mass Storage

    2 x S-ATA connectors

  • Networking

    Up to 2 x Gigabit Ethernet connectors

  • USB

    2 x USB 2.0 Type-A ports
    4 x internal USB 2.0 ports

  • Audio

    HD Audio Codec
    LineOut, Mic In internal connector

  • Other Interfaces

    FAN connector
    Front Header Expansion Connector

  • Power Supply

    +12VDC Power Jack
    RTC battery with lead cable and connector

  • Operating System

    Microsoft® Windows XP
    Microsoft® Windows 7
    Microsoft® Windows Embedded Standard 7
    Microsoft® Windows Embedded Standard 2009
    Microsoft® Windows Embedded Compact 7
    Linux Ubuntu 12.04 (32 bit)

  • Operating Temperature

    0°C  ÷ +60 °C (commercial version)



    *Measured at any point of the heatspreader/heatsink during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider specific cooling solutions for the final system.

  • Dimensions
    100 x 72 mm (3,93” x 2,83”)

Part Number

  • SBC-949-pITX

    Part number description
    Single Board Computer with Intel® Atom™ Cedar View family Processors and Intel® NM10 Express Chipset on Pico-ITX form factor
