SANTARO 10.1 BX PCT

基于恩智浦 i.MX6 处理器的 10.1 英寸面板安装人机界面

Product status

Development
Sampling
Production
Data Sheet

Contact us for more information and quotes

联系我们

CPU

NXP i.MX 6 Family

Graphics

GC320 & GC355 2D accelerator + GC2000 3D accelerator

Connectivity

1x 100MbE, up to 2x USB, 2x RS232, RS485, CAN

Memory

Soldered on Board DDR3L memory

Product details

Technical Info

  • Description

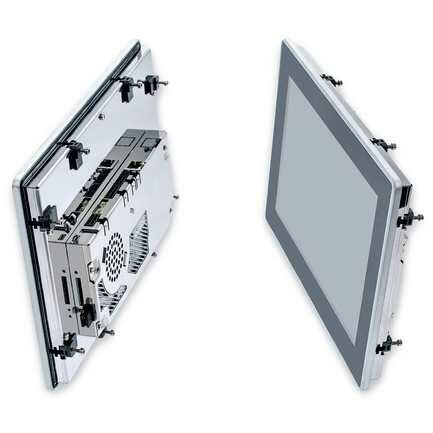

    This robust human machine interface (HMI), based on the SANTARO single board computer (SBC) series, impresses with its 10.1 inch IPS TFT display, capacitive touch screen and simple installation with the usual outstanding quality. The large, high-resolution touch display is ideal for providing the user with detailed information for interaction. This fanless industrial PC also impresses with its simple installation, good performance thanks to the i.MX6 ARM processor and various interfaces. Please do not hesitate to contact us if you have any questions regarding integration, configuration options or adaptations.
  • Processor

    NXP i.MX 6 Family based on ARM® Cortex®-A9 cores :

    • i.MX 6 Quad – Full featured, 4x Cortex®-A9 cores up to 1.0GHz
    • i.MX 6 Dual – Full featured, 4x Cortex®-A9 cores up to 1.0GHz
    • i.MX 6 Single – Full featured, 4x Cortex®-A9 cores up to 1.0GHz
  • Memory

    1 GB 64 bit DDR3L

  • Graphics

    Integrated Graphics, with up to 3 separate HW accelerators for 2D, OpenGL® ES2.0 3D OpenVG™ accelerator
    HW encoding of MPEG-4, H.263 V2, H.264, MJPEG
    HW decoding of MPEG-2, VC1, MPEG-4 / XviD, H.263, H.264, DivX

  • Video Resolution

    10.1 inch display, resolution 1280 x 800, LED lifetime typ. 50k hours
    typ. 420 cd/m² brightness
    P-Cap (Projected Capacitive touch screen), with 3.0mm toughened glass cover, RAL 9005

  • Mass Storage

    eMMC: 4 GB MLC
    SD slot: 4 bit MMC/SDIO/SD/SDHC

  • Networking

    1x 100MbEthernet

  • USB

    1x USB 2.0 OTG micro-AB
    1x USB 2.0 Type-A

  • Audio

    1x speaker (connector), 1 W RMS (8Ω) parallel to internal speaker

  • Serial Ports

    2x RS-232, RS-485

  • CAN Bus

    1x CAN (ISO/DIS 11898)

  • Other Interfaces

    2x Digital Input, 2x Digital Output

  • Power Supply

    9 ÷ 32 VDC

  • Operating System

    Yocto

  • Operating Temperature

    0°C ÷ +60°C

  • Dimensions
    275.2 x 192.0 x 37.7 mm

Part Number

  • SANTARO 10.1 BX PCT

    Part number description
    基于恩智浦 i.MX6 处理器的 10.1 英寸面板安装人机界面
