pConXS III by Keith & Koep
SODIMM 200 Carrier Board for Trizeps SOMs
Product status
Contact us for more information and quotes
Connectivity
i-MOD extension connectors allow additional interfaces to be added easily and cost-effectively
Product details
Technical Info
-
Description
Multifunctional and compact SODIMM 200 Carrier Board which supports the complete functions of the Trizeps VII and Trizeps VIII Nano/Mini/Plus SOMs -
Processor
Depends on compatible Trizeps SODIMM 200 SOMs

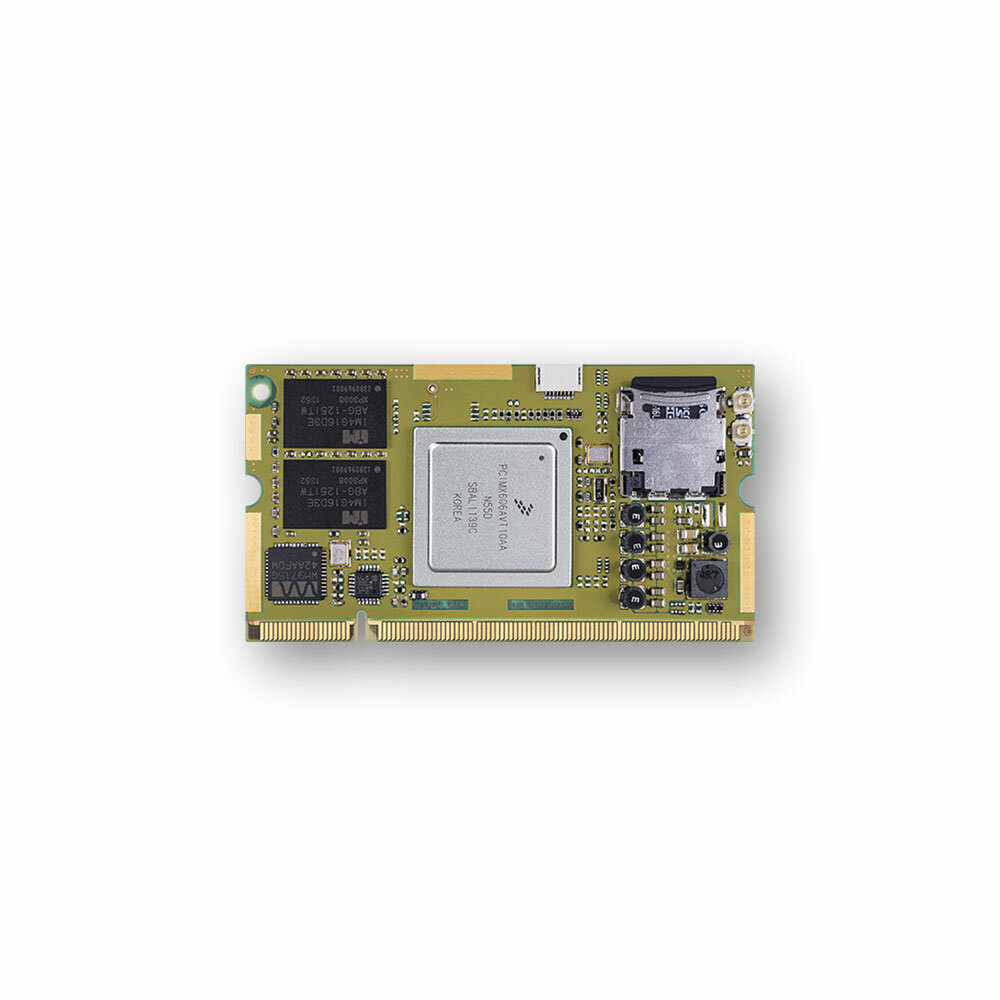

• NXP i.MX 6 Quad, Dual, DualLite, Solo, SoloX ARM Cortex A9 up to 1.0 GHz on Trizeps VII SOM
• NXP i.MX 8M ARM Cortex A53 up to 1.5 GHz, up to Quad Core, integrated ARM Cortex M4 on Trizeps VIII SOM
• NXP i.MX 8M Mini ARM Cortex A53 up to 1.8 GHz, up to Quad Core, integrated ARM Cortex M4 on Trizeps VIII Mini SOM
• NXP i.MX 8M Nano ARM Cortex A53 up to 1.5 GHz, up to Quad Core, integrated ARM Cortex M7 on Trizeps VIII Nano SOM
• NXP i.MX 8M Plus ARM Cortex A53 up to 1.8 GHz, up to Quad Core, integrated ARM Cortex M7 on Trizeps VIII Plus SOM -
Video Interfaces
LVDS (KuK Modis Standard), Dual-LVDS, 18 Bit parallel RGB display port, HDMI (with Trizeps VII, Trizeps VIII, Trizeps VIII Plus), capacitive touch, resistive touch
-
Mass Storage
SD card socket
-
Networking
Gigabit Ethernet RJ45 connectors
Wireless functionalities depend on Trizeps SOM:
• Trizeps VII: Onboard WiFi Bluetooth Modul, IEEE 802.11 a/b/g/n/e/i/h/d/k/r/w, +18 dBm, 72 Mbps (20 MHz) and up to 150 Mbps (40 MHz), Bluetooth 3.0+ EDR
• Trizeps VIII and Trizeps VIII Mini/Plus: Onboard WiFi-Bluetooth module, WiFi 2.4GHz/5Ghz, 802.11 a/b/g/n/ac 2x2 MU-MIMO / Bluetooth 5.0 -
USB
1x USB 3.0 OTG and 1x USB 2.0 Host via USB A connectors, 3x USB 2.0 Host via internal connectors
-
PCI-e
Mini PCIe Half-/Full Size card edge connector, combined with nano SIM card slot
-
Audio
3.5 mm stereo audio head-phone jack
SL2-40 pin header: stereo headphone (16R and 32R), speaker (Mono, 8R), LineIn, microphone, -
Serial Ports
RS232 D-Sub
i-MOD FFC connectors: UART
SL2-40 pin header: UART -
Other Interfaces
Realtime Clock with Backup Cap or battery
LED
3-Axis 12-bit/8-bit digital accelerometer
digital temperature sensor
reset and user tactile switch
powerfail detection
MIPI camera connector
analog BNC / Mini BNC parallel camera interface (optional)
2x CAN via i-MOD FFC connector or SL2-40 pin header
i-MOD FFC connectors: I2C, resistive Touch
SL2-40 pin header: Power, GPIOs (1x with PWM), SPDIF (out and in), SDIO, I2C, 3x ADC -
Power Supply
Industrial +12 up to +24V supply
-
Operating System
Linux Yocto, Debian / Android / Windows 10 IoT
-
Operating Temperature
-20 ÷ 85°C
-
Dimensions
133.0 x 93.5 x 25.0 mm
Documentation
-
Data Sheet
Part Number
-
pConXS III by Keith & Koep
Part number descriptionSODIMM 200 Carrier Board for Trizeps SOMsContact us for more informations or quotes
