FELIS

搭载英特尔®凌动™ E6xxT 系列中央处理器+ EG20T 芯片组 Qseven®Rel. 1.20 兼容模块

Product status

Development

Sampling

Production

Available in Industrial Temperature Range

Data Sheet

Contact us for more information and quotes

联系我们

CPU

Intel® Atom™ E6xxT series CPU up to 1.6GHz 4.5W TDP

Graphics

integrated Intel® 2D and 3D graphic controller

Connectivity

2x PCI-E x1 lanes; 6x USB 2.0 ports; 1x USB client

Memory

up to 2GB DDR2 onboard

Product details

Technical Info

Description

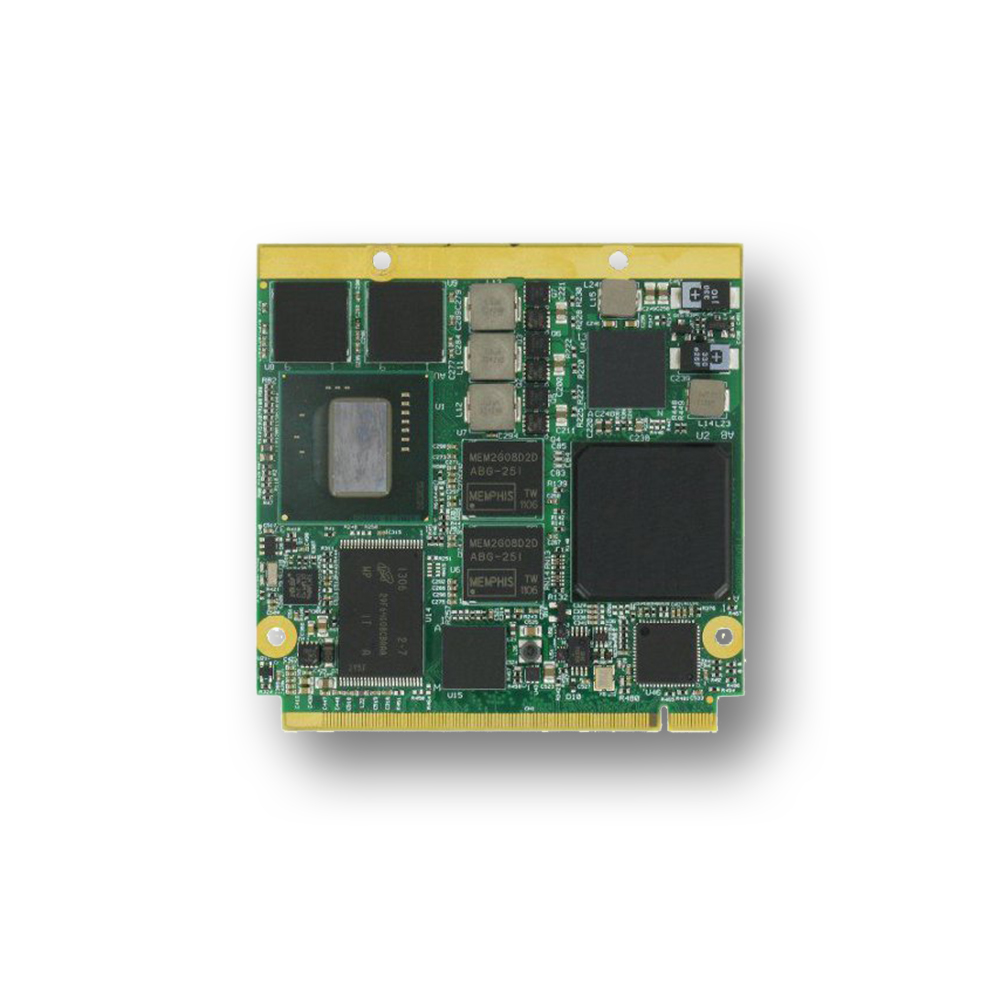

FELIS is a Qseven® Rel. 1.20 Compliant Module designed by SECO, integrating all the powerful capabilities offered by Intel® Atom™ E6xxT series processors coupled to EG20T Platform Controller Hub, including CAN and SPI interfaces. This makes the module extremely versatile and suited for all kind of applications, including automotive and industrial. All this comes directly in EXTREME version, with all the components mounted onboard certified for industrial temperature range (-40°C ÷ +85°C).
Processor

Intel® Atom™ E620T @ 600MHz 3.3W TDP
Intel® Atom™ E640T @ 1.0GHz 3.6W TDP
Intel® Atom™ E660T @ 1.3GHz 3.6W TDP
Intel® Atom™ E680T @ 1.6GHz 4.5W TDP
Chipset

Intel® PCH EG20T
Max Cores

1
Max Threads

2
Memory

up to 2GB DDR2 onboard
Graphics

integrated Intel® 2D and 3D graphic controller
Dual independent display support
MPEG2, MPEG4, H.264, DivX HW video decoding
Video Interfaces

LVDS Single Channel 18/24 Bit interface
SDVO Interface
Video Resolution

Maximum resolution 1280x768 on LVDS
Maximum resolution 1920x1080 on SDVO
Mass Storage

Optional onboard SATA Flash Disk up to 32GB
Up to 2 x S-ATA Channels
2 x Express Card interface
Networking

Intel® WG82574IT Gigabit Ethernet controller
USB

6 x USB 2.0 ports
1 x USB client
PCI-e

2x PCI-E x1 lanes
Audio

HD Audio Interface
Other Interfaces

SD / MMC / SDIO interface
CAN BUS Interface
Expansion Bus: I2C, SMBus, LPC, SPI
FAN Management Interface
Power management signals
Power Supply

+5VDC AT/ATX mode
Operating System

Microsoft® Windows XP (32 bit)
Microsoft® Windows 7 (32 bit)
Microsoft® Windows Embedded Standard 7 (32 bit)
Microsoft® Windows Embedded Standard 2009 (32 bit)
Microsoft® Windows Embedded Compact 7
Operating Temperature

-40°C ÷ +85°C (industrial version)

*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
Dimensions

70x70 mm (2.76” x 2.76”)

Software

Documentation

Part Number

FELIS
