DELTA
搭载英伟达® Tegra® T30 处理器的 Qseven® 模块
Product status
Contact us for more information and quotes
CPU
ARM® CORTEX -A9 Quad MPCore® CPU, 1.3 GHz per core
Graphics
NVIDIA GeForce Ultra low power GPU
Connectivity
6x USB 2.0
Memory
up to 2GB DDR3L on-board soldered memory
Product details
Technical Info
-
Description
DELTA is a Qseven® Rel. 1.20 Compliant Module designed by SECO that represents the top performance possibility for computational and graphical applications based on low power ARM architectures. The board integrates Tegra® T30 High-Definition Mobile processor from NVIDIA®, a Quad-Core Cortex A9 CPU with frequencies up to 1.3GHz. -
Processor
NVIDIA® Tegra® T30 with ARM® CORTEX -A9 Quad MPCore® CPU, 1.3 GHz per core
-
Max Cores
4
-
Memory
up to 2GB DDR3L on-board soldered memory
-
Graphics
embedded NVIDIA® ULP GeForce® GPU
Integrated High Definition Audio-Video Processor
Dual independent display support -
Video Interfaces
LVDS Single / Dual Channel 18 / 24 bit interface
HDMI 1.4a Interface
Video Input Port / Camera connector -
Video Resolution
HDMI Up to 1920 x 1080p
LVDS Up to 2048 x 1536 -
Mass Storage
Up to 16GB on-board soldered eMMC drive
1 x S-ATA Channel
microSD Slot on-board
4-bit SD / MMC interface -
Networking
Gigabit Ethernet Interface
-
USB
6 x USB 2.0 Host ports
-
PCI-e
1 x PCI-e x4 lane, or 2 x PCI-e x2 lanes
(with support for 2 x PCI-e x 1 devices) -
Audio
HD Audio Interface
-
Serial Ports
2 serial ports (Tx, Rx signals)
CAN Bus Interface -
Other Interfaces
I2C, SM Bus, LPC, SPI
One Wire Interface
Thermal Cooling Interface
Power management signals -
Power Supply
+5VDC ± 5%
-
Operating System
Linux
-
Operating Temperature
0°C ÷ +60°C (commercial version)

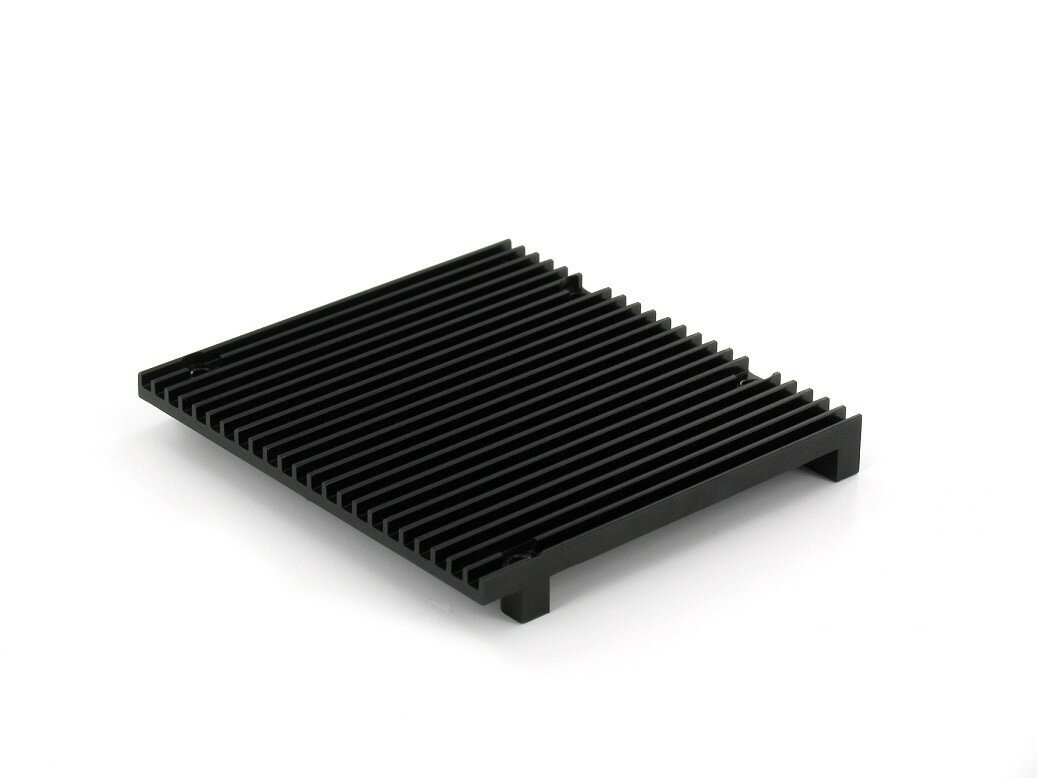

-20°C ÷ +70°C (extended version)*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
-
Dimensions
70x70 mm (2.76” x 2.76”)
Software
-
Linux Kernel Patches
-
Linux
-
SECO Technical Resources
Documentation
-
Data Sheet
-
Manual
-
Part Number
-
DELTA
Part number description搭载英伟达® Tegra® T30 处理器的 Qseven® 模块Contact us for more informations or quotes
