CQ7-A42

Qseven® rel. 2.0 Compliant Carrier Board on 3.5” Form factor

Product status

Development
Sampling
Production
Available in Industrial Temperature Range

Contact us for more information and quotes

Product details

Technical Info

  • Description
    The Qseven® Carrier Board CQ7-A42 is a full featured carrier board for Qseven® Rel. 2.0 compliant CPU modules, in 3.5” form factor. This carrier board can be used with any Qseven® Rel. 2.0 compliant module without incompatibilities and/or loss of functionalities. The board has been specifically designed for taking advantage of all possible features that can be offered by x86 and/or ARM architectures on Qseven® modules. SECOCQ7-3.5 has been developed most of all as a development board to explore the possibilities offered by Qseven® modules, but it could also be a good solution for low volumes production for companies that do not want or need to develop customised carrier board.
  • Video Interfaces

    LVDS Dual Channel 24-bit + backlight connectors or 2xeDP Connectors

    DP++ or HDMI Connector

  • Mass Storage

    1 x S-ATA with HDD Power connector
    1 x mSATA Slot
    microSD Slot on combo microSD + SIM connector

  • Networking

    Up to 2 x Gigabit Ethernet connectors

  • USB

    1 x USB 3.0 Host port on Type-A socket
    2 x USB 2.0 Host ports on double Type-A sockets
    2 x USB 2.0 Host ports on internal pin header
    1 x USB 2.0 OTG ports on micro-AB socket (USB Port shared with miniPCI-e slot)

  • PCI-e

    miniPCI-e slot Full/Half size, combined with SIM card slot

  • Audio

    Audio interface on internal pin header

  • Serial Ports

    4-wires RS-232/RS-422/RS-485 configurable serial port on DB9 male connector

    2 x RS-232 Full-modem serial ports on internal header (needs LPC interface from Qseven module)

    CAN interface on PCB terminal block

  • Other Interfaces

    SPI internal pin header

    LPC Bus internal pin header

    SM Bus / I2C GPIO expander, makes available 16 x GPIOs on internal pin header

    Front Panel Header

    1 x 28 pin connector for additional features (I2C, ACPI signals, SM Bus, Watch Dog, Thermal Management)

    +12V Tachometric FAN connector

    Optional Debug USB port on mini-B Socket

    Optional MFG connector for JTAG programming of Qseven® module

  • Power Supply

    +12VDC Mini-fit Standard ATX power connector
    Coin cell battery Holder for CMOS and RTC

  • Operating Temperature

    -40°C ÷ +85°C (industrial range)



    *All carrier board components must remain within the operating temperature at any and all times, including start-up; carrier operating temperature is independent of the module installed. Please refer to the specific module for more details. Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider specific cooling solutions for the final system.

  • Dimensions
    146 x 102 mm (5,75” x 4,02”)

Part Number

  • QA42-0000-1111-I0-V

    Part number description
    CQ7-A42 - Carrier Board for Qseven® rel. 2.0 Compliant modules on 3.5" Form factor - DisplayPort - 2nd Ethernet Port - LVDS - Debug Port
    Contact us for more informations or quotes
    联系我们
  • QA42-0000-2111-I0-V

    Part number description
    CQ7-A42 - Carrier Board for Qseven® rel. 2.0 Compliant modules on 3.5" Form factor - HDMI - 2nd Ethernet Port - LVDS - Debug Port
    Contact us for more informations or quotes
    联系我们

Related Products

SOM-uQ7-MX8M-Mini-Nano

搭载恩智浦 i.MX 8M 迷你处理器和恩智浦 i.MX 8M 纳米处理器的 μQseven® 标准模块

Development

View Product
SOM-uQ7-MX6-2

搭载恩智浦 i.MX 6 处理器的 μQseven® 模块

Production

View Product
SOM-uQ7-BT

搭载英特尔®凌动™ E3800 和赛扬®(原名 Bay Trail)处理器的 μQseven Rel.2.0 模块

Production

View Product
SOM-Q7-MX8M

搭载恩智浦 i.MX 8 应用处理器的 Qseven®Rel. 2.1 模块

Sampling

View Product
SOM-Q7-BT-2

搭载英特尔®凌动™ E3800和赛扬®(原名 Bay Trail)处理器的Qseven®Rel. 2.0 模块

Production

View Product
[Picture]Q7-974_front
SOM-Q7-BT

搭载英特尔®凌动™ E3800 和赛扬®(原名 Bay Trail)处理器的 Qseven®Rel. 2.0 兼容模块

Production

View Product
SOM-Q7-APL

搭载英特尔®凌动 X 系列、英特尔®赛扬® J/N 系列和英特尔®奔腾® N 系列(原名 Apollo Lake)处理器 的Qseven®Rel. 2.1 模块

Production

View Product
[Picture] μQ7-962_front
SOM-uQ7-MX6

搭载恩智浦 i.MX 6 处理器的 μQseven® 模块

Production

View Product
[Picture] Q7-928_front
SOM-Q7-MX6

搭载恩智浦 i.MX 6 处理器的 Qseven® 模块

Production

View Product
[Picture] Q7-963_front
FELIS

搭载英特尔®凌动™ E6xxT 系列中央处理器+ EG20T 芯片组 Qseven®Rel. 1.20 兼容模块

Production

View Product
[Picture] Q7-922_front
DELTA

搭载英伟达® Tegra® T30 处理器的 Qseven® 模块

Production

View Product
[Picture] Q7-881_front
ALYA

搭载英特尔®凌动™ E6xx 系列中央处理器+ EG20T 芯片组的 Qseven® 模块

Production

View Product
[Picture] Q7-796_front
ALTAIS

搭载德州仪器® OMAP™ 37xx 处理器的 Qseven® 模块

Production

View Product
PWK-009

Power supply kit: Power brick (60W, 12V 5A) w/ adapter cable for QA42 and SA44 and Power cord w/ adapters (EU;US;JPN etc.)

Production

View Product
PWK-003/QA42

Power supply kit: Power brick (EA1050A(M03) 60W, 12V 5A) + Power cord (CV-AL006) + adapters (EU;US;JPN etc.)

Production

View Product
CABKITA42

Connection Cables Kit for CQ7-A42

Production

View Product
VA74-0000-0000-I0

I2S Audio module (VA74-0000-0000-I0) for QA42

Production

View Product
VA67-0000-0000-I0

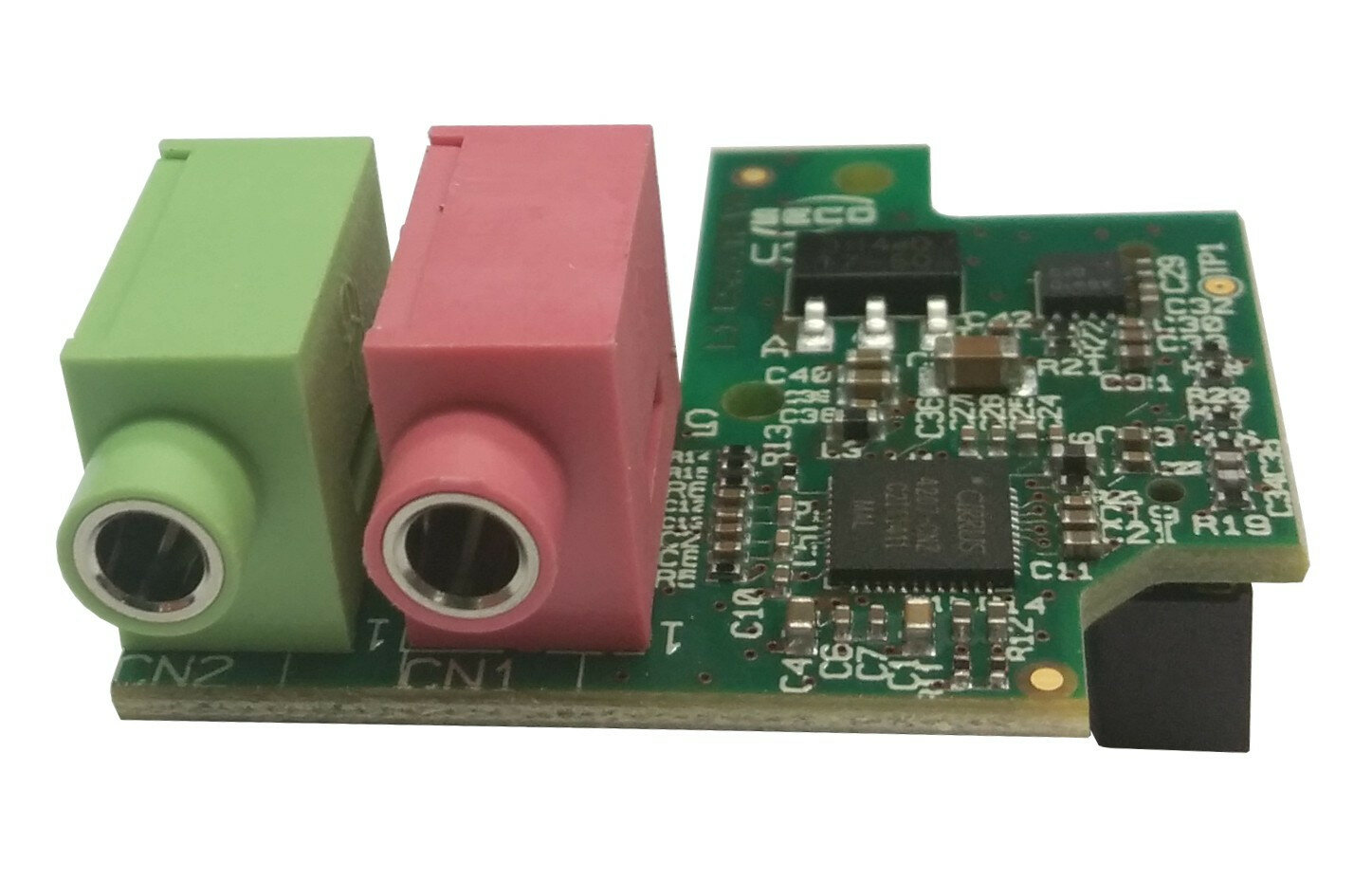

HD Audio Module (VA67-0000-0000-I0) for QA42

Production

View Product
VA13

USB-to-Serial port converter modules

Production

View Product
ASK-425

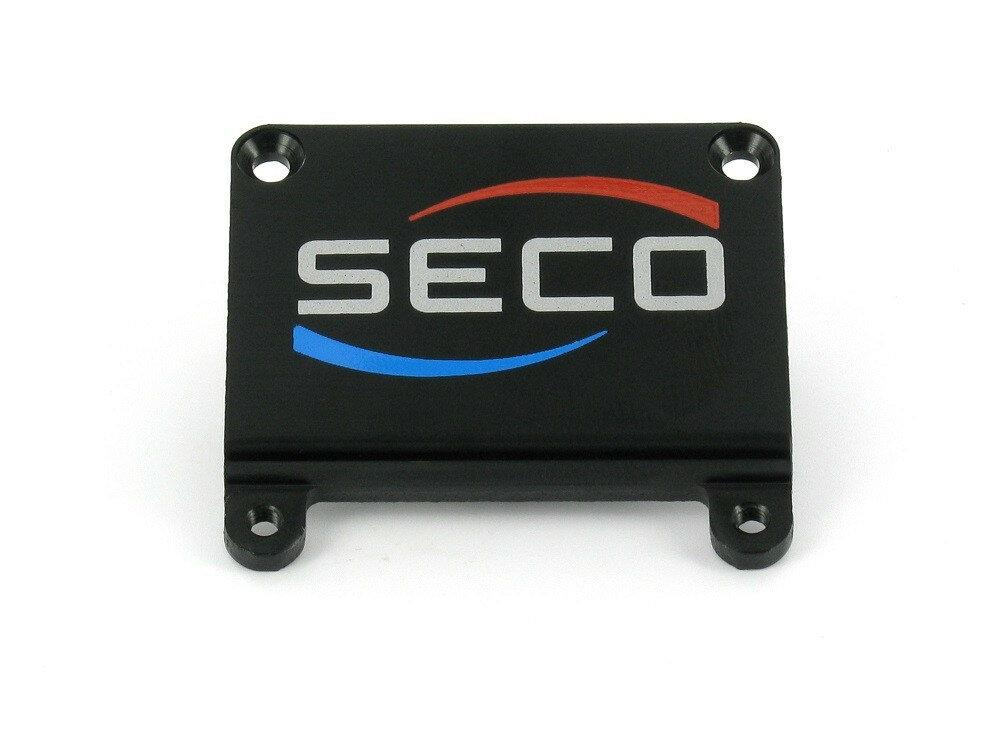

Adapter for mounting a microQ7 module on standard Qseven carrier boards
