Carrier-COMe-T6-C30

Carrier Board for COM Express™ Type 6 Modules on 3.5” form factor

Product status

Development
Sampling
Production

Contact us for more information and quotes

Product details

Technical Info

  • Description

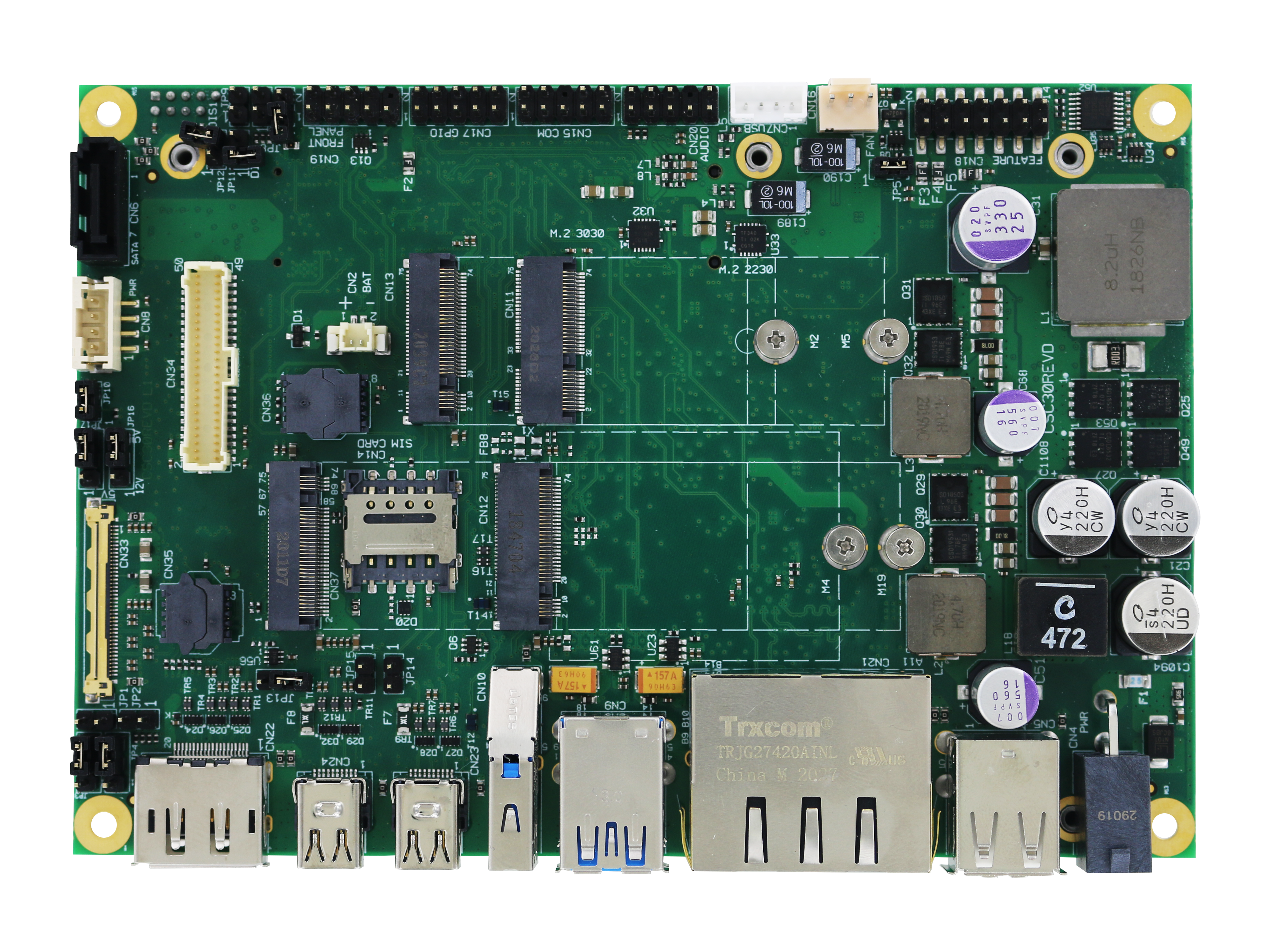

    The CCOMe-C30 is a full-featured Carrier Board for COM-Express™ Type 6 Modules on 3.5” form factor. Specifically designed for digital signage, but also highly versatile; it is an extremely compact and I/O rich solution, offering a wide range of connectivity possibilities, excellent for multi-display applications.
  • Video Interfaces

    1 x DP++ connector
    2 x miniDP++ connectors
    LVDS 24-bit Single/Dual Channel
    LVDS External EDID flash socket
    eDP 4-lanes 40 poles VESA connector

  • Mass Storage

    S-ATA 7p M connector + 4 pins power connector
    M.2 Socket 2 2260 Key B slot for SSD
    M.2 Socket 3 2280 Key  M slot for PCI-e x4 SSDs
    μSD Card slot (interface multiplexed with GPIO header)

  • Networking

    Dual RJ-45 connector (1 port managed by COM Express Gigabit Ethernet interface, 1 port managed by Carrier board’s Intel® I21x GbEthernet controller)
    M.2 Socket 2 2242 / 3042 Key B slot for WWAN modules (modem)
    M.2 Socket 1 2230 Key E slot for WiFi / BT modules

  • USB

    3 x USB 3.0 Host ports on Type-A sockets
    2 x USB 2.0 Host ports on Type-A sockets
    1 x USB 2.0 Host port on internal pin header

  • Audio

    On-board HD Audio Codec (Realtek ALC262)
    Mic In + Line Out internal pin header

  • Serial Ports

    2 x RS-232 / RS-422 / RS-485 ports on internal pin header (from carrier board’s SuperI/O)
    2 x RS-232 ports on feature pin header (from module)

  • Other Interfaces

    microSIM slot for M.2 modem
    4 x GPI + 4 x GPO pin header (interface multiplexed with μSD slot)
    Button / LEDs front panel header
    3-pin tachometric FAN connector
    I2C + SM Bus on feature Pin header
    LPC internal header

  • Power Supply

    19÷24 VDC fixed (only CPU modules with max 45W TDP supported)
    Mega-Fit® 2x1 Power Connector
    Cabled Coin-cell connector for RTC

  • Operating Temperature

    0°C ÷ +50°C



    *All carrier board components must remain within the operating temperature at any and all times, including start-up; carrier operating temperature is independent of the module installed. Please refer to the specific module for more details. Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider specific cooling solutions for the final system.

  • Dimensions
    146x102mm (3.5” form factor, 5.75” x 4.02”)

Part Number

  • MC30-0000-0000-C3

    Part number description
    Evaluation Carrier Board for COM Express™ Type 6 Modules on 3.5” form factor
    Contact us for more informations or quotes
    联系我们

Related Products

ECHO

搭载英特尔® Haswell 处理器的 COM Express®基本型 6 型模块

Production

View Product
SOM-COMe-CT6-WHL-U

搭载第八代英特尔®酷睿™和赛扬™ U系列(原名 Whiskey Lake-U)处理器的 COM Express®Rel. 3.0 紧凑型 6 型模块

Sampling

View Product
SOM-COMe-CT6-BT

搭载英特尔®凌动™ E3800 和赛扬®(原名 Bay Trail)处理器的 COM Express® 紧凑型 6 型模块

Production

View Product
SOM-COMe-CT6-MBPF

搭载 AMD 嵌入式第三代 R 系列 SoC(原名 Merlin Falcon)或 G 系列 SOC-I (原名 Brown Falcon)或 G 系列 SOC-J 处理器(原名 Prairie Falcon)的COM Express® 紧凑型 6 型模块

Production

View Product
SOM-COMe-BT6-SKL/KL

搭载英特尔®第六代和第七代酷睿™/至强®(原名 Skylake 和 Kaby Lake)中央处理器的 COM Express®基本型 6 型模块

Production

View Product
SOM-COMe-CT6-V1000

搭载 AMD 锐龙™嵌入式 V1000 处理器的 COM Express®Rel. 3.0 紧凑型 6 型模块

Production

View Product
SOM-COMe-BT6-CFL-H

搭载英特尔®酷睿™/至强®(原名 Coffee Lake)、酷睿™/至强®/赛扬®(原名 Coffee Lake Refresh)处理器的COM Express® 3.0 基本型 6 型模块

Production

View Product
SOM-COMe-CT6-APL

搭载英特尔®凌动™ X、英特尔® 赛扬® J / N、英特尔® 奔腾® N 系列(原名 Apollo Lake)处理器的 COM Express® 3.0 紧凑型 6 型模块

Development

View Product
SOM-COMe-CT6-R1000

搭载 AMD 锐龙™嵌入式 R1000 系列 SoC 的COM Express® Rel. 3.0 紧凑型 6 型模块

Development

View Product

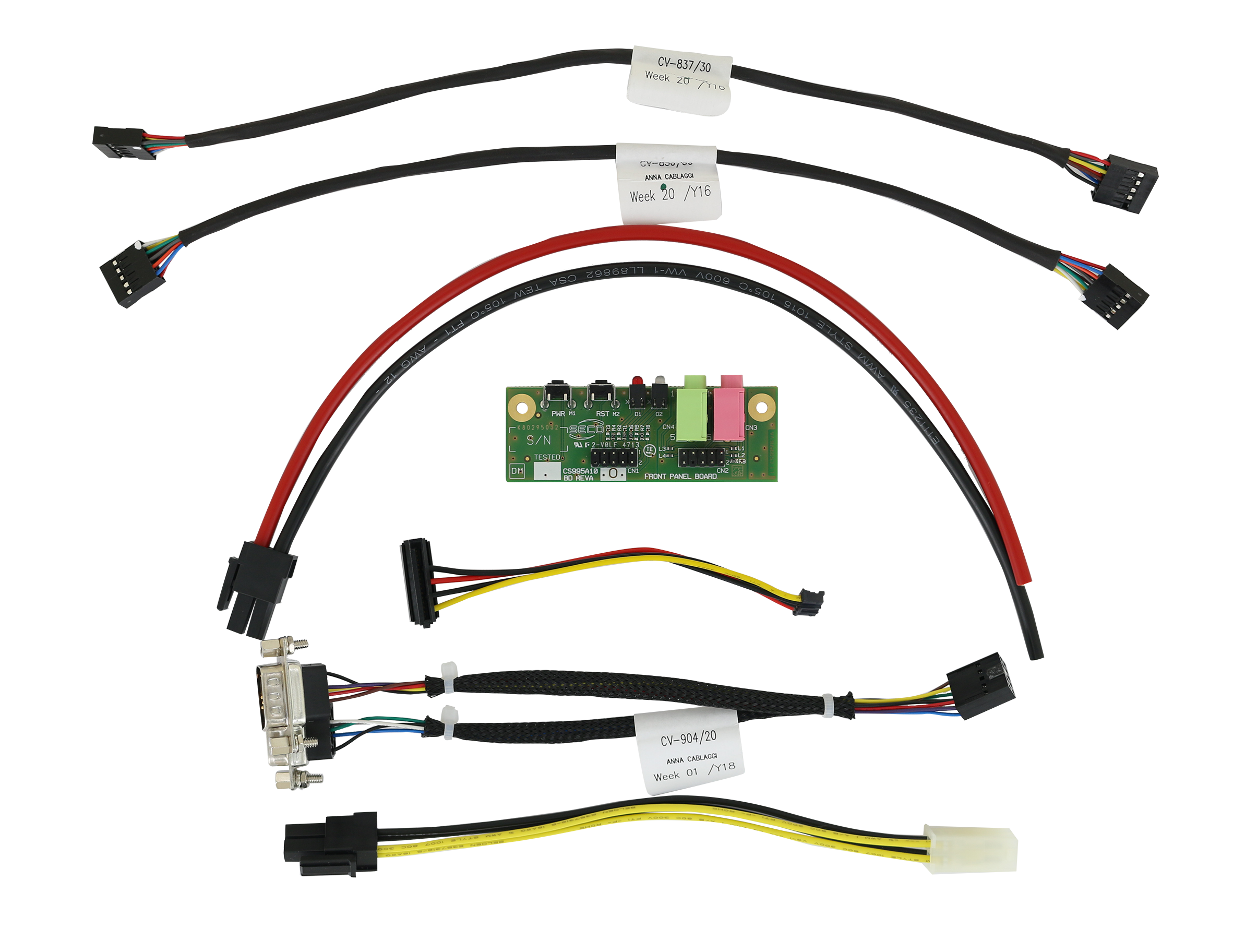

CABKITC30
