ALTAIS

Name: ALTAIS
SKU: ALTAIS

搭载德州仪器® OMAP™ 37xx 处理器的 Qseven® 模块

Product status

Development

Sampling

Production

Available in Industrial Temperature Range

Data Sheet

联系我们

CPU

OMAP™ 37xx Family - ARM Cortex™ A8 up to 1 GHz core

Graphics

PowerVR SGX™ Graphics Accelerator + Up to 800MHz TMS320C64x+™ DSP Core

Connectivity

2 x COM ports; CAN interface; 10/100 Base-T interface

Memory

Mobile DDR 128 / 256MB / 512 MB onboard

Product details

Technical Info

Description

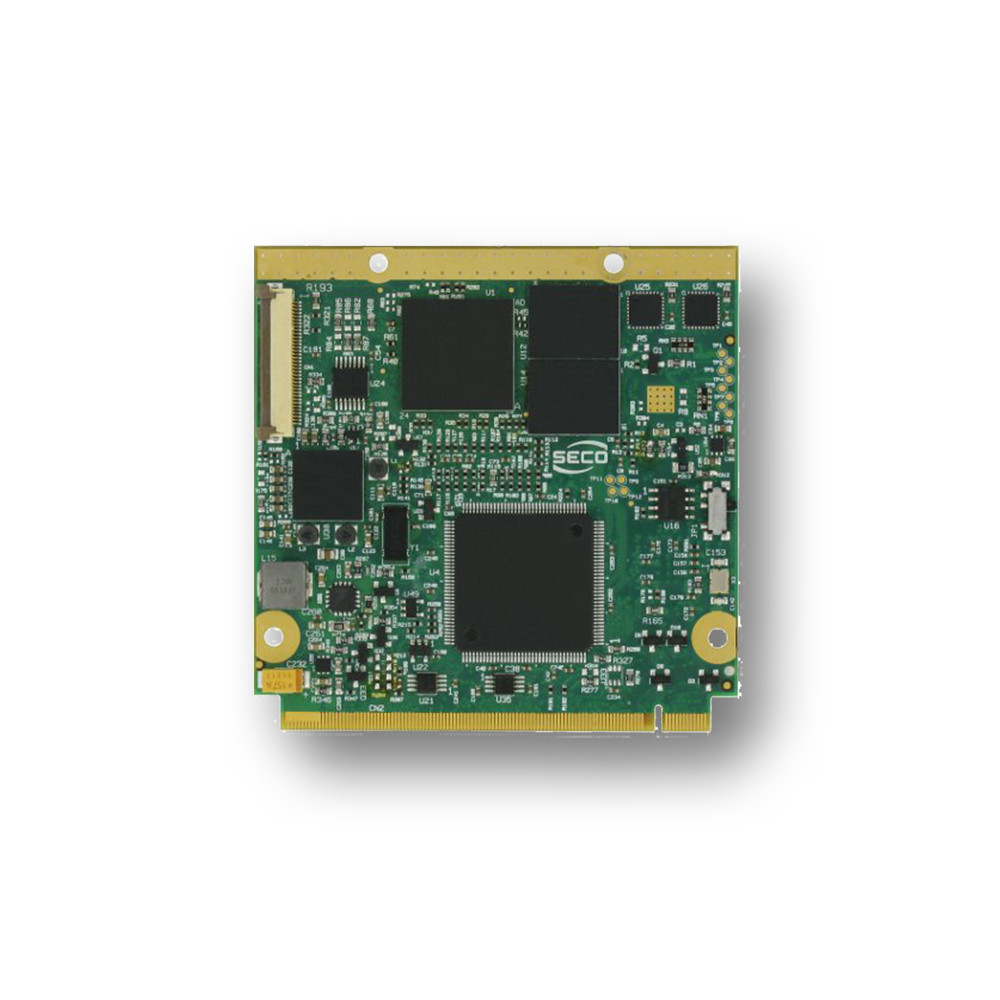

ALTAIS is a Qseven® Spec. Rel. 1.20 Compliant Module designed by SECO, which represents the best solution for development of scalable ARM solutions, offering different level of performance and ultra-low power consumption demanding applications. The board integrates the OMAP™ 37xx platform of Texas Instruments®, an application Processor integrating a Cortex™ A8 core. The processor is available in different versions, in order to meet all kind of customers needing.
Processor

Texas Instruments® OMAP™ 37xx Family:
AM3703 (Cortex™ A8 up to 1 GHz core)
DM3730 (Cortex™ A8, up to 1GHz core + PowerVR
SGX™ Graphics Accelerator + Up to 800MHz
TMS320C64x+™ DSP Core
Max Cores

1
Memory

Mobile DDR 128 / 256MB / 512 MB onboard
Video Interfaces

LVDS Single/Dual Channel 18/24 Bit
Video Resolution

LVDS, up to 1366 x 768
Mass Storage

256 MB / 512MB / 1GB NAND Flash
eMMC soldered onboard up to 16GB
Networking

10/100 Base-T interface
USB

1x USB OTG
2x USB 2.0 Host
Audio

AC’97 Audio Interface
Serial Ports

2 x COM ports
CAN interface
Other Interfaces

MMC/HC MMC/SD/SDHC/SDIO interface
Video Input Port / Camera Connector
LPC Bus
SMBus
SPI interface
I2C bus
JTAG
Operating System

Microsoft® Windows® CE 6.0
Linux
Operating Temperature

0°C ÷ +70°C (commercial version)
-40°C ÷ +85°C (industrial version)

*Measured at any point of SECO standard heastpreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application-specific cooling solutions for the final system to keep the heatspreader temperature in the range indicated.
Dimensions

70x70 mm (2.76” x 2.76”)
